  • 698-2700MHz SISO Indoor Directional Wall Mount Panel Antennas
  • 698-2700MHz SISO Indoor Directional Wall Mount Panel Antennas
  • video

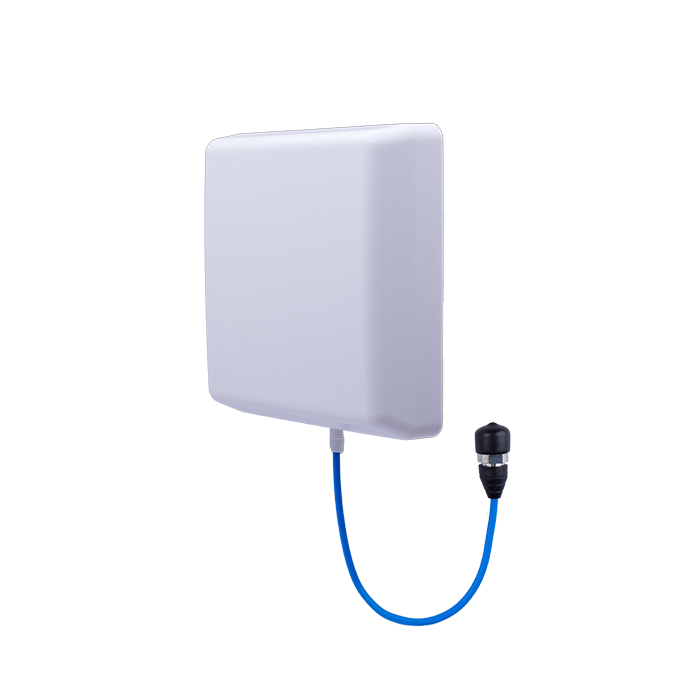

698-2700MHz SISO Indoor Directional Wall Mount Panel Antennas

Model: DB-698-2700-7-65A-ID-LP Freq: 698-960MHz, 1710-2700MHz Gain: 6.5dBi, 9.0dBi VSWR: ≤2.0, ≤1.8 Polarization: Vertical
    Tags:
    SISO Indoor Panel AntennasSISO Indoor Directional AntennasSISO Indoor Wall Mount AntennasIndoor Panel Antennas


    Electrical Specifications

    Frequency Range(MHz)

    698-960

    1710-2700

    Gain(dBi)

    6.5

    9.0

    VSWR

    ≤2.0

    ≤1.8

    Polarization

    Vertical

    PIM, 3rd Order, 2x20W(dBc)

    ≤-140 | -150 | -153

    Front to Back Ratio(dB), dB

    ≥10

    ≥15

    Horizontal Beam width

    85°

    65°

    Vertical Beam width

    82°

    60°

    Input Impedance

    50 Ω

    Max. Input Power

    50 W

    Mechanical Specifications

    Connector

    N | 4.3-10 Female

    Dimensions(mm)

    168x158x50

    Weight(kg)

    0.4

    Radome Material

    ABS

    Operating Temperature

    -40°C to +65 °C

    Mounting

    Wall Mount | Pole Mount









    Horizontal

    		SISO Indoor Panel Antennas
    		SISO Indoor Directional Antennas








    Vertical

    		SISO Indoor Wall Mount Antennas
    		SISO Indoor Panel Antennas
    700-960MHz1710-2690MHz
