Electrical Specifications | |||||
Frequency Range(MHz) | 600-698 | 617-698 | 698-960 | 1710-2700 | 3300-4000 |
Gain(dBi) | 5.5 | 5.7 | 6.5 | 8.0 | 7.0 |
VSWR | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.8 | ≤2.0 |
Polarization | Vertical | ||||
PIM, 3rd Order, 2x20W(dBc) | ≤-140 | ||||
Front to Back Ratio(dB) | ≥9 | ≥9 | ≥9 | ≥15 | ≥11 |
Horizontal Beam width | 85° | 80° | 76° | 65° | 50° |
Vertical Beam width | 74° | 72° | 68° | 60° | 45° |
Input Impedance | 50 Ω | ||||
Max. Input Power | 50 W | ||||
Mechanical Specifications | |||||
Connector | N | 4.3-10 Female | ||||
Dimensions(mm) | 173x173x70 | ||||
Weight(kg) | 0.50 | ||||
Radome Material | ABS | ||||
Operating Temperature | -40°C to +65 °C | ||||
Mounting | Ceiling Mount | Wall Mount | ||||
Horizontal |  |  |  |
Vertical |  |  |  |
| 700-960MHz | 1710-2690MHz | 3300-3950MHz |
Model: QX-698-2700HH-4A-LP Freq: 698-960MHz, 1710-2700MHz Gain: 4.0dBi, 5.5dBi VSWR: ≤1.8, ≤1.7 Polarization: Linear Horizontal for Each Radiator
MoreModel: QX-600-4000HH-4A-LP Freq: 600-698MHz, 698-960MHz, 1710-2170MHz, 3300-4000MHz Gain: 2.5dBi, 4.0dBi, 5.5dBi, 5.5dBi VSWR: ≤2.0, ≤1.8, ≤1.7, ≤1.7 Polarization: Linear Horizontal for Each Radiator
MoreModel: QX-698-2700S-3B- LP Freq: 698-960MHz, 1710-2700MHz Gain: 3.5dBi, 4.5dBi VSWR: ≤1.8, ≤1.8 Polarization: Linear H | V for each Radiator
MoreModel: QX-600-4000S-3B- LP Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz Gain: 2.0dBi, 3.5dBi, 4.5dBi, 5.0dBi VSWR: ≤2.2, ≤1.8, ≤1.8, ≤1.8 Polarization: Linear H | V for each Radiator
MoreModel: QX-600-6000S-3B- LP Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz, 4000-6000MHz Gain: 2.0dBi, 3.dBi, 4.5dBi, 5.0dBi, 5.5dBi VSWR: ≤2.2, ≤1.8, ≤1.8, ≤1.8, ≤1.8 Polarization: Linear H | V for each Radiator
MoreModel: QX-698-2700-4A-LP Freq: 698-960MHz, 1710-2170MHz Gain: 3.5dBi, 4.0dBi VSWR: ≤1.8, ≤1.8 Polarization: Horizontal
MoreModel: QJ-698-2700-4M Freq: 698-960MHz, 1710-2700MHz Gain: 2.0dBi, 4.0dBi VSWR: ≤1.8, ≤1.8 Polarization: Vertical
MoreModel: DBDS-698-2700-11-LP Freq: 698-960MHz, 1710-2700MHz Gain: 8.0dBi, 9.0dBi VSWR: ≤2.0, ≤1.8 Polarization: Vertical

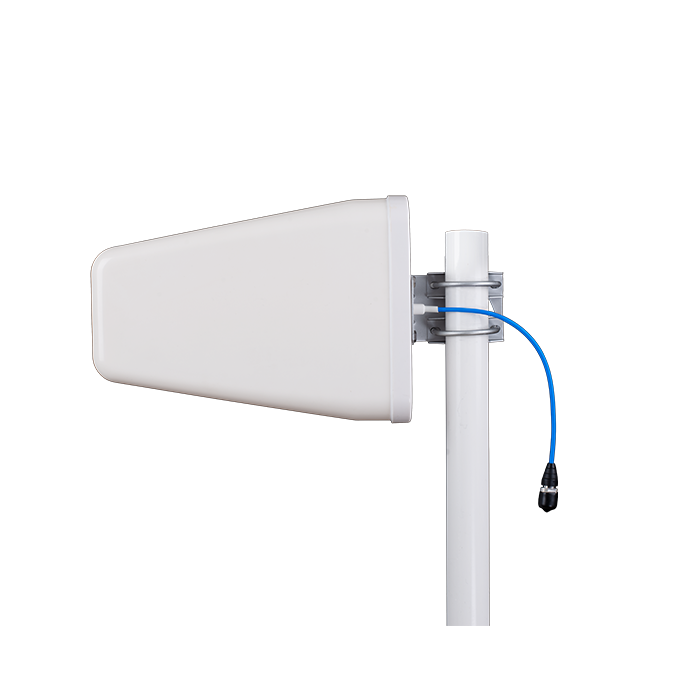

MoreModel: DBDS-617-3800-11-LP Freq: 617-698MHz, 698-960MHz, 1710-2700MHz. 3300-3800MHz Gain: 6.0dBi, 8.0dBi, 9.0dBi, 9.5dBi VSWR: ≤2.0, ≤2.0, ≤1.8, ≤1.8 Polarization: Vertical
MoreModel: QJ-698-2700-4A-LP Freq: 698-960MHz, 1710-2700MHz Gain: 2.5dBi, 4.0dBi VSWR: ≤1.8, ≤1.8 Polarization: Vertical
