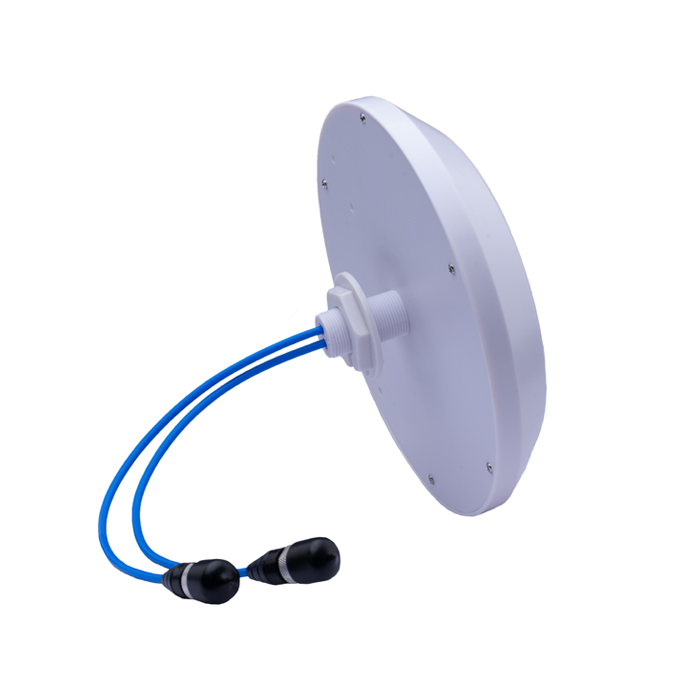

Electrical Specifications | |||||
Frequency Range(MHz) | 698-960 | 1710-2700 | |||
Gain(dBi) | 3.5 | 4.5 | |||
VSWR | ≤1.8 | ≤1.8 | |||
Polarization | Linear H | V for each Radiator | ||||
Isolation(dB) | >19 | >20 | |||
PIM, 3rd Order, 2x20W(dBc) | ≤-140 | -150 | -153 | ||||
Horizontal Beam width | 360° | ||||
Vertical Beam width | 90° | 46° | |||
Input Impedance | 50 Ω | ||||
Max. Input Power | 50 W | ||||
Mechanical Specifications | |||||
Connector | 2xN | 4.3-10 Female | ||||
Dimensions(mm) | Ø215x47 | ||||
Weight(kg) | 0.45 | ||||
Radome Material | ABS | ||||
Operating Temperature | -40°C to +65 | ||||
Mounting | Ceiling Mount | ||||
Horizontal |  |  |
Vertical |  |  |
| 700-960MHz | 1710-2690MHz |
