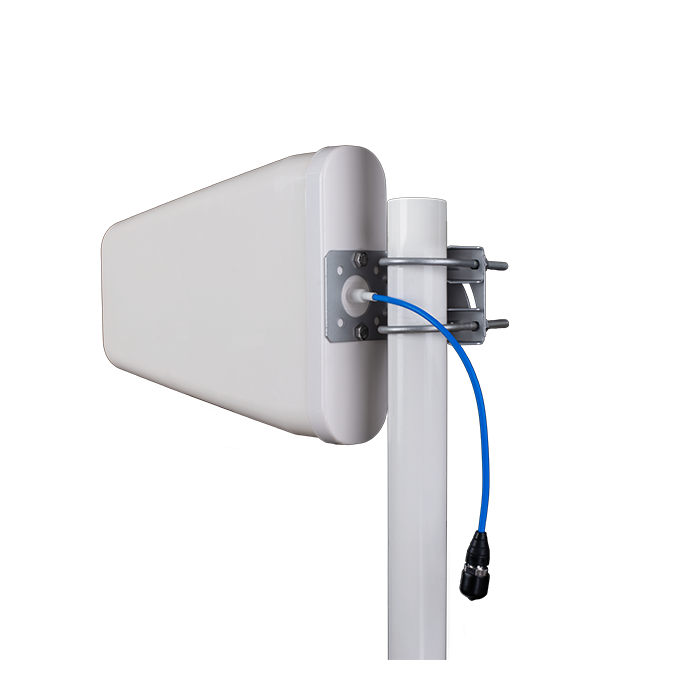

Electrical Specifications | |||||
Frequency Range(MHz) | 698-960 | 1710-2700 | |||
Gain(dBi) | 8.0 | 9.0 | |||
VSWR | ≤2.0 | ≤1.8 | |||
Polarization | Vertical | ||||
PIM, 3rd Order, 2x20W( dBc) | ≤-140 | -150 | -153 | ||||
Front to Back Ratio(dB) | ≥15 | ||||
Horizontal Beam width | 95° | 78° | |||
Vertical Beam width | 68° | 56° | |||
Input Impedance | 50 Ω | ||||
Max. Input Power | 50 W | ||||
Lightning Protection | DC Ground | ||||
Mechanical Specifications | |||||
Connector | N| 4.3-10 Female | ||||
Dimensions(mm) | 294x210x65 | ||||
Weight(kg) | 0.87 | ||||
Radome Material | ABS | ||||
Rated Wind Velocity | 210 km/h | ||||
Operating Temperature | -40°C to +65 °C | ||||
Mounting Pole | Ø38-Ø52 mm | ||||
