  • 600-6000MHz 3dBi MIMO Indoor Omni Ceiling Mount Antennas
  • 600-6000MHz 3dBi MIMO Indoor Omni Ceiling Mount Antennas
  • video

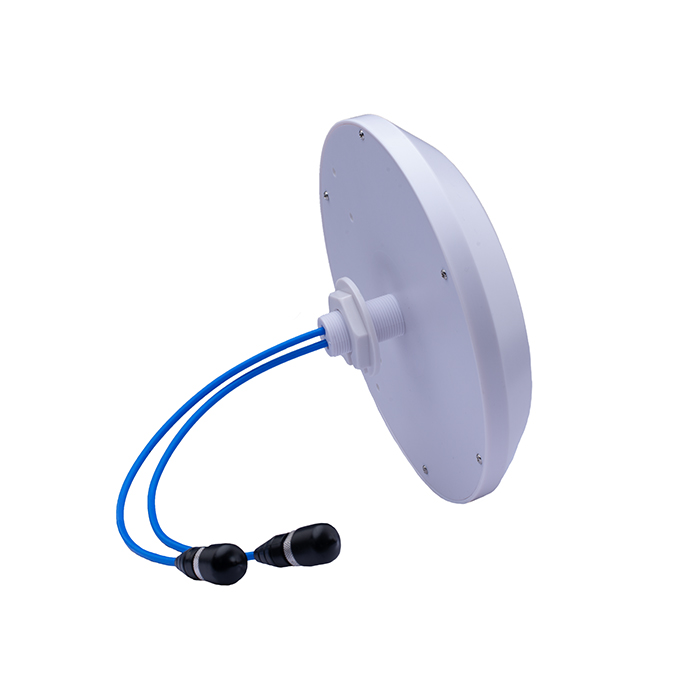

600-6000MHz 3dBi MIMO Indoor Omni Ceiling Mount Antennas

Model: QX-600-6000S-3B- LP Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz, 4000-6000MHz Gain: 2.0dBi, 3.dBi, 4.5dBi, 5.0dBi, 5.5dBi VSWR: ≤2.2, ≤1.8, ≤1.8, ≤1.8, ≤1.8 Polarization: Linear H | V for each Radiator
    Tags:
    MIMO Indoor Omni Ceiling AntennaMIMO Omni AntennasMIMO Ceiling AntennasLow-PIM MIMO Ceiling Antennas


    Electrical Specifications

    Frequency Range(MHz)

    600-698

    617-698

    698-960

    1710-2700

    3300-4000

    4000-6000

    Gain(dBi)

    2.0

    2.5

    3.5

    4.5

    5.0

    5.5

    VSWR

    ≤2.2

    ≤2.0

    ≤1.8

    ≤1.8

    ≤1.8

    ≤1.8

    Polarization

    Linear H | V for each Radiator

    Isolation(dB)

    >19

    >20

    >23

    PIM, 3rd Order, 2x20W(dBc)

    ≤-140 | -150 | -153

    Horizontal Beam width

    360°

    Vertical Beam width

    110°

    95°

    90°

    46°

    38°

    30°

    Input Impedance

    50 Ω

    Max. Input Power

    50 W

    Mechanical Specifications

    Connector

    2xN | 4.3-10 Female

    Dimensions(mm)

    Ø215x47

    Weight(kg)

    0.45

    Radome Material

    ABS

    Operating Temperature

    -40°C to +65

    Mounting

    Ceiling Mount




    Horizontal

    		MIMO Indoor Omni Ceiling Antenna
    		MIMO Omni Antennas
    		MIMO Ceiling Antennas
    		MIMO Indoor Omni Ceiling Antenna




    Vertical

    		MIMO Omni Antennas
    		MIMO Ceiling Antennas
    		MIMO Indoor Omni Ceiling Antenna
    		MIMO Omni Antennas
    700-960MHz1710-2690MHz3300-3950MHz4900-5900MHz
