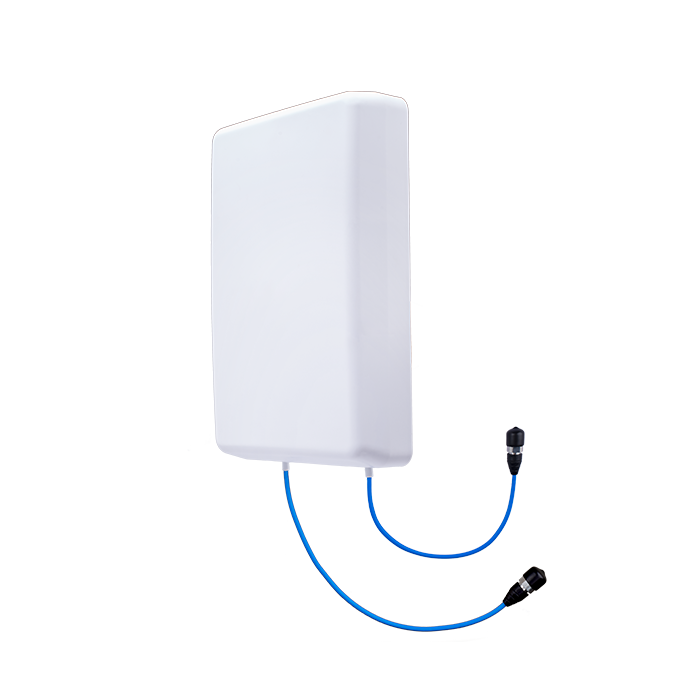

698-2700MHz MIMO Indoor Directional Wall Mount Panel Antennas

Model: DB-698-2700S-9-65A-ID-LP Freq: 698-960MHz, 1710-2700MHz Gain: 5.5dBi, 8.5dBi VSWR: 2.0, ≤1.8 Polarization: ±45°
    Tags:
    MIMO Indoor Panel AntennasMIMO Indoor Directional AntennasMIMO Indoor Wall Mount Antennas


    Electrical Specifications

    Frequency Range(MHz)

    698-960

    1710-2700

    Gain(dBi)

    5.5

    8.5

    VSWR

    ≤2.0

    ≤1.8

    Polarization

    ±45°

    Isolation(dB)

    ≥12

    ≥20

    Front to Back Ratio(dB)

    ≥10

    ≥13

    PIM, 3rd Order, 2x20W(dBc)

    ≤-140 | -150 | -153

    Horizontal Beam width

    90°

    65°

    Vertical Beam width

    78°

    60°

    Input Impedance

    50 Ω

    Max. Input Power

    50 W

    Mechanical Specifications

    Connector

    2xN | 4.3-10 Female

    Dimensions(mm)

    315x195x68

    Weight(kg)

    0.78

    Radome Material

    ABS

    Operating Temperature

    -40°C to +65°C

    Mounting

    Wall Mount | Pole Mount









    Horizontal

    		MIMO Indoor Panel Antennas
    		MIMO Indoor Directional Antennas







    Vertical

    		MIMO Indoor Wall Mount Antennas
    		MIMO Indoor Panel Antennas
    700-960MHz1710-2690MHz
