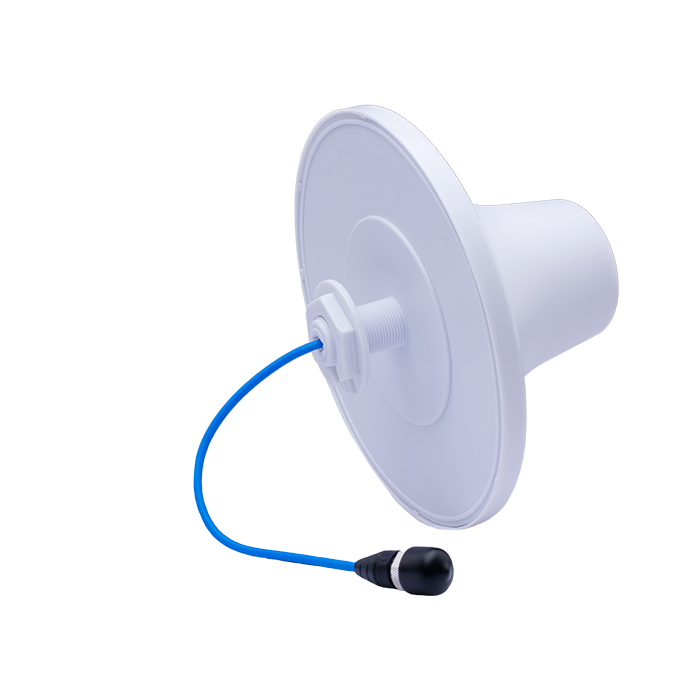

600-6000MHz SISO Indoor Omni Ceiling Mount Antennas

Model: QX-600-6000-3A-LP Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz, 4000-6000MHz Gain: 1.3dBi, 2.0dBi, 3.0dBi, 4.0dBi, 4.5dBi VSWR: ≤2.5, ≤2.0, ≤1.5, ≤1.5, ≤2.0 Polarization: Vertical

Tags:

SISO Indoor Omni Antennas Omni Ceiling Antennas

Electrical Specifications
Frequency Range(MHz)	600-698	617-698	698-960	1710-2700	3300-4000	4000-6000
Gain(dBi)	1.3	1.5	2.0	3.0	4.0	4.5
VSWR	≤2.5	≤2.0	≤2.0	≤1.5	≤1.5	≤2.0
Polarization	Vertical
PIM, 3rd Order, 2x20W(dBc)	≤-140 \| -150 \| -153
Horizontal Beam width	360°
Vertical Beam width	108°	95°	80°	38°	32°	29°
Input Impedance	50 Ω
Max. Input Power	50 W
Mechanical Specifications
Connector	N \| 4.3-10 Female
Dimensions(mm)	Ø204x129
Weight(kg)	0.4
Radome Material	ABS
Operating Temperature	-40°C to +65 °C
Mounting	Ceiling Mount

Horizontal

Vertical

700-960MHz

1710-2690MHz

3300-3950MHz

4900-5900MHz
