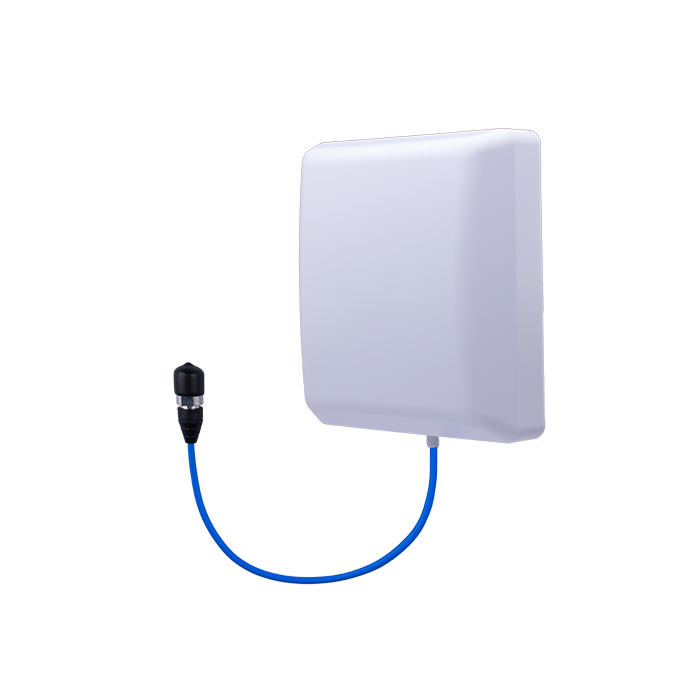

600-6000MHz SISO Indoor Directional Wall Mount Panel Antennas

Model: DB-600-6000-7-65A-ID-LP Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz, 4000-6000MHz Gain: 5.0dBi, 6.5dBi, 9.0dBi, 7.0dBi, 8.5dBi VSWR: ≤2.3, ≤2.0, ≤1.8, ≤1.8, ≤2.0 Polarization: Vertical
    Tags:
    SISO Indoor Panel AntennasSISO Indoor Directional AntennasSISO Indoor Wall Mount AntennasIndoor Panel Antennas


    Electrical Specifications

    Frequency Range(MHz)

    600-698

    617-698

    698-960

    1710-2700

    3300-4000

    4000-6000

    Gain(dBi)

    5.0

    5.0

    6.5

    9.0

    7.0

    8.5

    VSWR

    ≤2.3

    ≤2.3

    ≤2.0

    ≤1.8

    ≤1.8

    ≤2.0

    Polarization

    Vertical

    PIM, 3rd Order, 2x20W(dBc)

    ≤-140 | -150 | -153

    Front to Back Ratio(dB), dB

    ≥8

    ≥9

    ≥10

    ≥15

    ≥11

    ≥8.5

    Horizontal Beam width

    95°

    100°

    85°

    65°

    50°

    14°

    Vertical Beam width

    95°

    90°

    82°

    60°

    45°

    16°

    Input Impedance

    50 Ω

    Max. Input Power

    50 W

    Mechanical Specifications

    Connector

    N | 4.3-10 Female

    Dimensions(mm)

    180×158×60

    Weight(kg)

    0.4

    Radome Material

    ABS

    Operating Temperature

    -40°C to +65 °C

    Mounting

    Wall Mount | Pole Mount





    Horizontal

    		SISO Indoor Panel Antennas
    		SISO Indoor Directional Antennas
    		SISO Indoor Wall Mount Antennas
    		SISO Indoor Panel Antennas




    Vertical

    		SISO Indoor Directional Antennas
    		SISO Indoor Wall Mount Antennas
    		SISO Indoor Panel Antennas
    		SISO Indoor Directional Antennas
    700-960MHz1710-2690MHz3300-3950MHz4900-5900MHz
