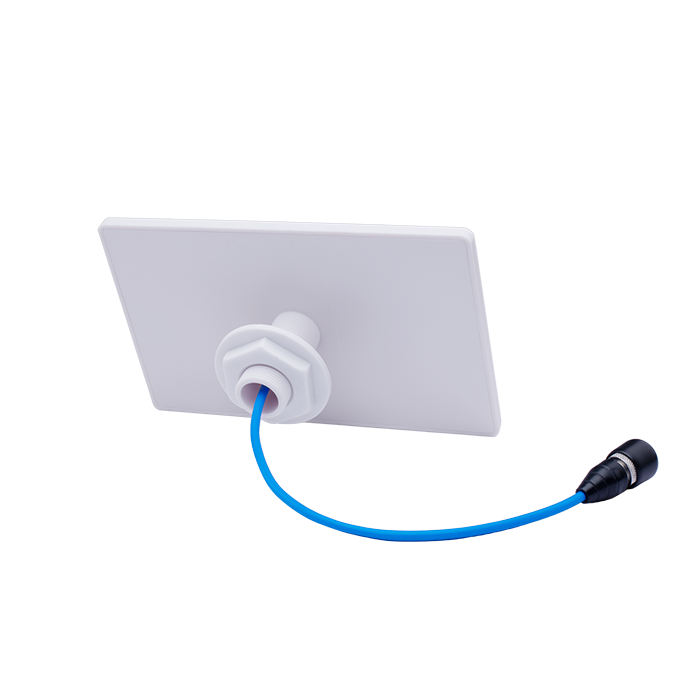

Electrical Specifications | ||||||
Frequency Range(MHz) | 600-698 | 617-698 | 698-960 | 1710-2700 | 3300-4000 | 4000-6000 |
Gain(dBi) | 3.0 | 3.0 | 3.5 | 4.0 | 5.5 | 5.5 |
VSWR | ≤2.5 | ≤2.0 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
Polarization | Horizontal | |||||
PIM, 3rd Order, 2x20W(dBc) | ≤-140 | -150 | -153 | |||||
Horizontal Beam width | 360° | |||||
Vertical Beam width | 118° | 85° | 75° | 63° | 45° | |
Input Impedance | 50 Ω | |||||
Max. Input Power | 50 W | |||||
Mechanical Specifications | ||||||
Connector | N | 4.3-10 Female | |||||
Dimensions(mm) | 180x113x7.0 | |||||
Weight(kg) | 0.2 | |||||
Color | White | |||||
Radome Material | ABS | |||||
Operating Temperature | -40°C to +65 °C | |||||
Mounting | Ceiling Mount | |||||
Horizontal |  |  |  |  |
Vertical |  |  |  |  |
| 700-960MHVz | 1710-2690MHz | 3300-3950MHz | 4900-5900MHz |
