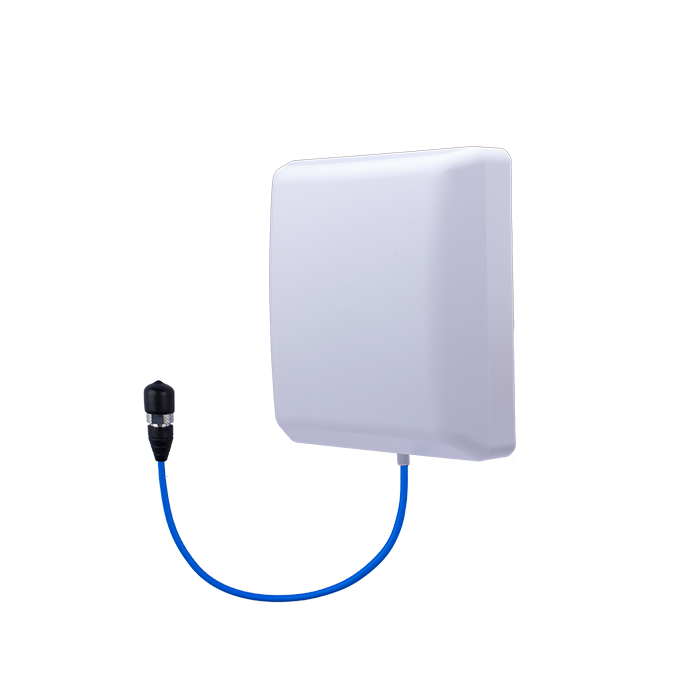

600-4000MHz SISO Outdoor Directional Pole Mount Panel Antennas

Model: DB-600-4000-7-65A-OD-LP Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz Gain: 5.0dBi, 6.5dBi, 9.0dBi, 7.0dBi VSWR: ≤2.3, ≤2.0, ≤1.8, ≤1.8 Polarization: Vertical
    Tags:
    SISO Outdoor Panel AntennasSISO Outdoor Directional AntennasSISO Outdoor Pole Mount AntennasOutdoor Directional Pole Mount Panel AntennasSISO Outdoor Pole Mount Panel Antennas


    Electrical Specifications

    Frequency Range(MHz)

    600-698

    617-698

    698-960

    1710-2700

    3300-4000

    Gain(dBi)

    5.0

    5.0

    6.5

    9.0

    7.0

    VSWR

    ≤2.3

    ≤2.3

    ≤2.0

    ≤1.8

    ≤1.8

    Polarization

    Vertical

    PIM, 3rd Order, 2x20W(dBc)

    ≤-140 | -150 | -153

    Front to Back Ratio(dB), dB

    ≥8

    ≥9

    ≥10

    ≥15

    ≥11

    Horizontal Beam width

    95°

    100°

    85°

    65°

    50°

    Vertical Beam width

    95°

    90°

    82°

    60°

    45°

    Input Impedance

    50 Ω

    Max. Input Power

    50 W

    Mechanical Specifications

    Connector

    N | 4.3-10 Female

    Dimensions(mm)

    180×158×60

    Weight(kg)

    0.4

    Radome Material

    ABS

    Operating Temperature

    -40°C to +65 °C

    Mounting

    Wall Mount | Pole Mount







    Horizontal

    		SISO Outdoor Panel Antennas
    		SISO Outdoor Directional Antennas
    		SISO Outdoor Pole Mount Antennas






    Vertical

    		SISO Outdoor Panel Antennas
    		SISO Outdoor Directional Antennas
    		SISO Outdoor Pole Mount Antennas

    		700-960MHz1710-2690MHz3300-3950MHz
