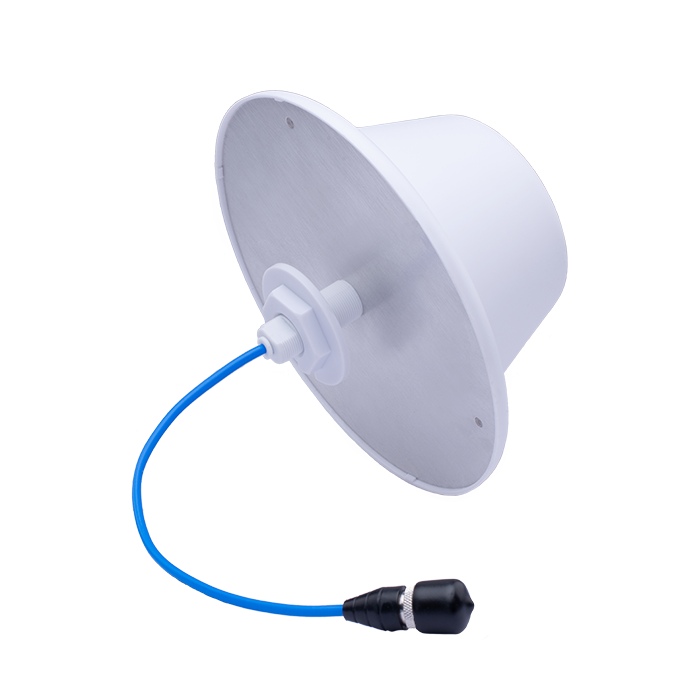

600-4000MHz SISO Indoor Omni Dome Antennas

Model: QX-600-4000-3T-LP Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz Gain: 1.3dBi, 2.0dBi, 5.0dBi, 5.5dBi VSWR: ≤2.5, ≤1.8, ≤1.5, ≤1.5 Polarization: Vertical
    Tags:
    SISO Indoor Omni AntennasIndoor Dome Omni AntennasDome Omni AntennasDome Ceiling Antennas

    Electrical Specifications

    Frequency Range(MHz)

    600-698

    617-698

    698-960

    1710-2700

    3300-4000

    Gain(dBi)

    1.3

    2.0

    2.0

    5.0

    5.5

    VSWR

    ≤2.5

    ≤2.0

    ≤1.8

    ≤1.5

    ≤1.5

    Polarization

    Vertical

    PIM, 3rd Order, 2x20W(dBc)

    ≤-140 | -150 | -153

    Horizontal Beam width

    360°

    Vertical Beam width

    85°

    80°

    54°

    28°

    Input Impedance

    50 Ω

    Max. Input Power

    50 W

    Lightning Protection

    DC Ground

    Mechanical Specifications

    Connector

    N | 4.3-10 Female

    Dimensions(mm)

    Ø186x85

    Weight(kg)

    0.25

    Radome Material

    ABS

    Operating Temperature

    -40°C to +65 °C

    Mounting

    Ceiling Mount





    Horizontal


    		SISO Indoor Omni Antennas
    		Indoor Dome Omni Antennas
    		Dome Omni Antennas





    Vertical

    		SISO Indoor Omni Antennas
    		Indoor Dome Omni Antennas
    		Dome Omni Antennas

    		 700-960MHz  1710-2690MHz         3300-3950MHz
