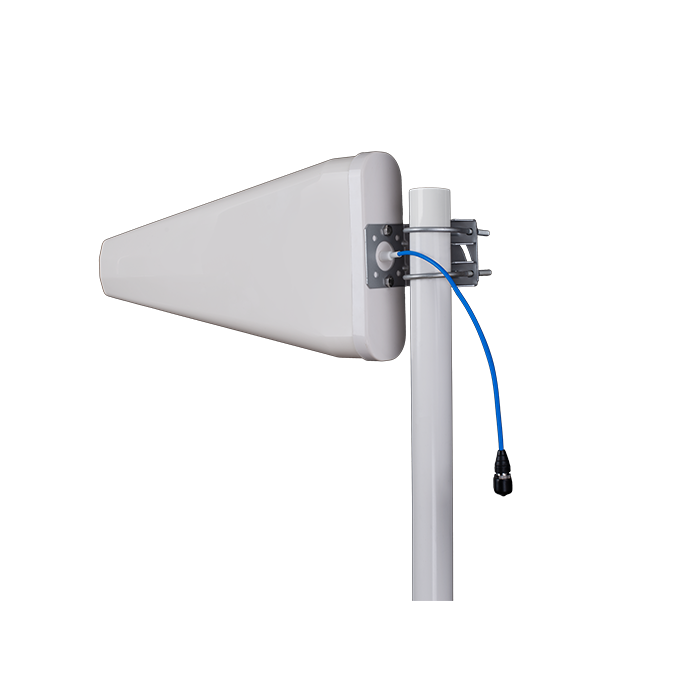

Electrical Specifications | |||||
Frequency Range(MHz) | 600-698 | 617-698 | 698-960 | 1710-2700 | 3300-4000 |
Gain(dBi) | 7.0 | 8.0 | 9.5 | 11.0 | 11.5 |
VSWR | ≤2.5 | ≤2.5 | ≤2.0 | ≤1.8 | ≤1.8 |
Polarization | Vertical | ||||
PIM, 3rd Order, 2x20W(dBc) | ≤-140 | -150 | -153 | ||||
Front to Back Ratio(dB) | ≥11 | ≥15 | |||
Horizontal Beam width | 108° | 102° | 90° | 75° | 54° |
Vertical Beam width | 98° | 83° | 66° | 58° | 42° |
Input Impedance | 50 Ω | ||||
Max. Input Power | 50 W | ||||
Lightning Protection | DC Ground | ||||
Mechanical Specifications | |||||
Connector | N | 4.3-10 Female | ||||
Dimensions(mm) | 440x205x60 | ||||
Weight(kg) | 1.10 | ||||
Radome Material | ABS | ||||
Rated Wind Velocity | 210 km/h | ||||
Operating Temperature | -40°C to +65 °C | ||||
Mounting Pole | Ø38-Ø52 mm | ||||
Mounting | Pole Mount | ||||
Horizontal |  |  |  |
Vertical |  |  |  |
700-960MHz | 1710-2690MHz | 3300-3950MHz |
