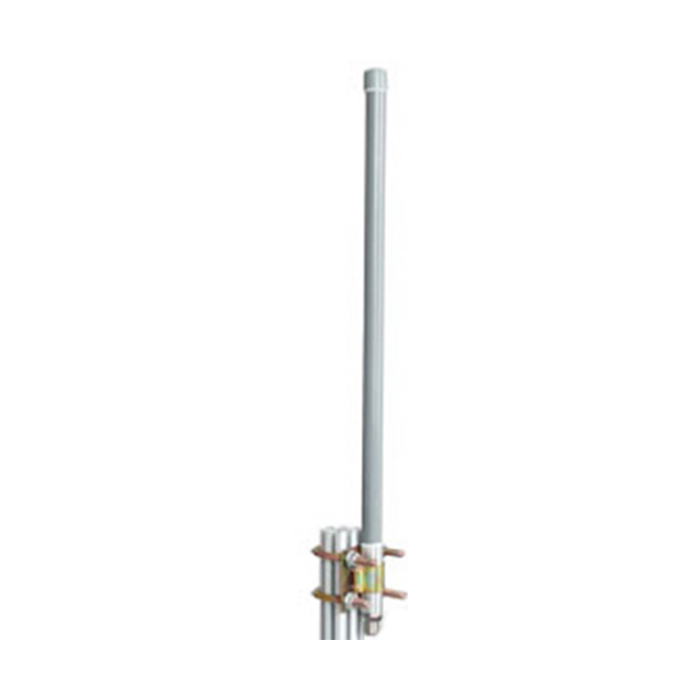

5.8GHz 8dBi Omni-Directional Antenna

Model: QJ-5800-8 Freq: 5500-5850 MHz Gain: 8.0 dBi VSWR: ≤1.5 Polarization: Vertical
    Tags:
    5.8GHz 8dBi Omni Fiberglass Antennas5.8GHz 8dBi Omni Antennas


    Electrical Specifications

    Frequency Range(MHz)

    5500-5850

    Gain(dBi)

    8.0

    VSWR

    ≤1.5

    Polarization

    Vertical

    Horizontal Beam width

    360°

    Vertical Beam width

    17°

    Input Impedance

    50 Ω

    Max. Input Power

    100 W

    Lightning Protection

    DC Ground

    Mechanical Specifications

    Connector

    N-Female

    Dimensions(mm)

    Ø20×600

    Weight(kg)

    0.26

    Reflector Material

    Copper

    Radome Material

    Fiberglass

    Rated Wind Velocity

    210 km/h

    Operating Temperature

    -40°C to +65 °C

    Mounting Pole(mm)

    Ø38-Ø52


    5.8GHz 8dBi Omni Fiberglass Antennas
    		5.8GHz 8dBi Omni Antennas
    Horizontal  Vertical
