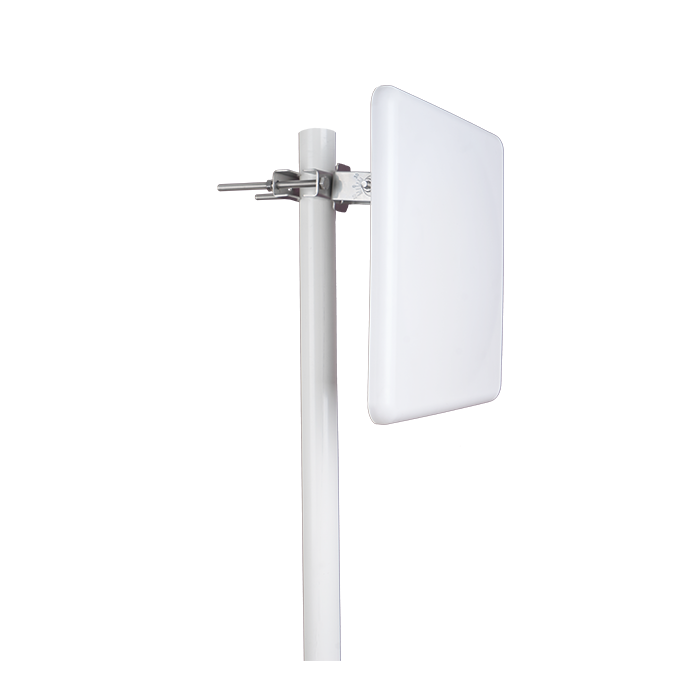

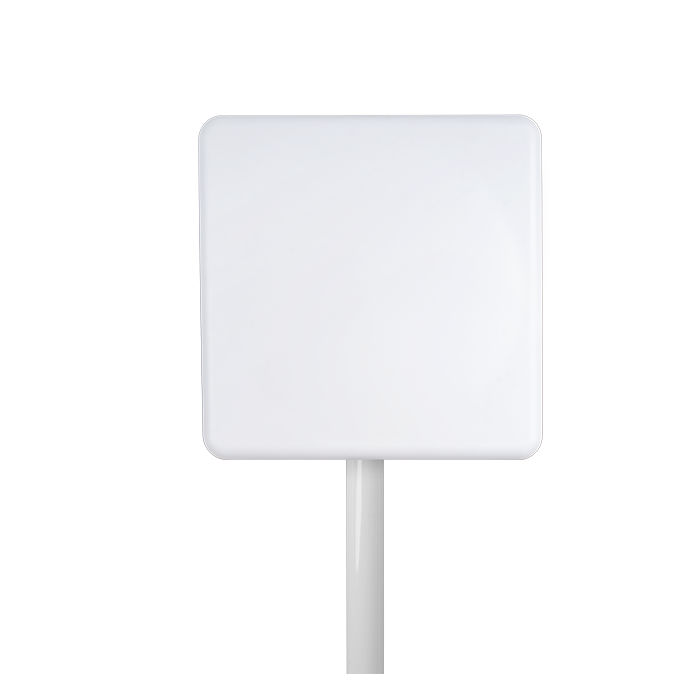

5.8GHz 23dBi Directional Panel Antenna

Model: DB-5800-23-11 Freq: 5150-5850 MHz Gain: 23.0dBi VSWR: ≤1.8 Polarization: Vertical
    Tags:
    5.8GHz 23dBi Directional Panel Antennas5.8GHz 23dBi Panel Antennas


    Electrical Specifications

    Frequency Range(MHz)

    5150-5850

    Gain(dBi)

    23.0

    VSWR

    ≤1.8

    Polarization

    Vertical

    Front to Back Ratio(dB)

    ≥30

    Horizontal Beam width

    11°

    Vertical Beam width

    11°

    Input Impedance

    50 Ω

    Max. Input Power

    100 W

    Lightning Protection

    DC Ground

    Mechanical Specifications

    Connector

    N-Female

    Dimensions(mm)

    385×385×30

    Weight(kg)

    2.3

    Reflector Material

    Aluminum

    Radome Material

    ABS

    Operating Temperature

    -40°C to +65 °C


    5.8GHz 23dBi Directional Panel Antennas
    		5.8GHz 23dBi Panel Antennas
    HorizontalVertical
