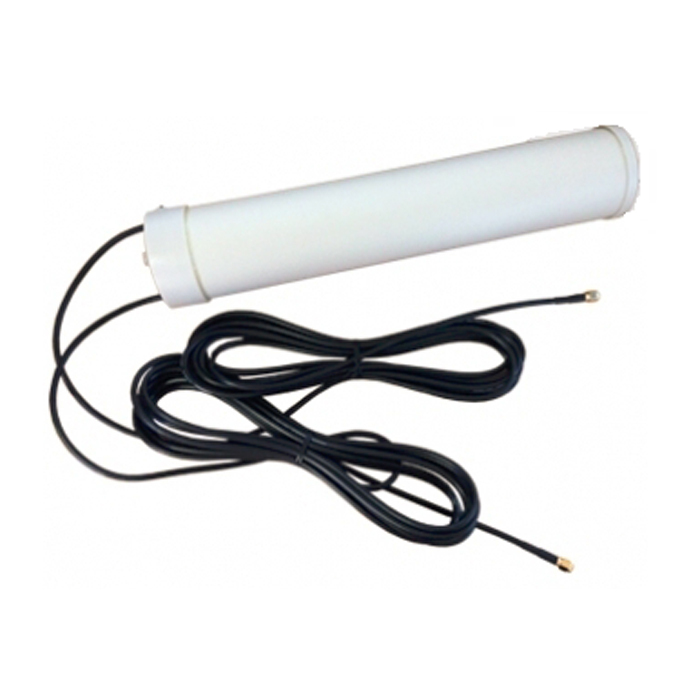

MIMO Outdoor Omni-Directional Pole Mount Antennas

Model: QJ-698-2700-6
Freq: 698-960MHz, 1710-2700MHz
Gain: 2.5dBi, 5.0dBi
VSWR: ≤2.5, ≤2.0
Polarization: Vertical

MIMO Outdoor Omni-Directional Pole Mount Antennas


Electrical Specifications

Frequency Range(MHz)

698-960

1710-2700

Gain(dBi)

2.5

5.0

VSWR

2.5

2.0

Polarization

Vertical

Horizontal Beam width

360°

Vertical Beam width

70°

45°

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

2xSMA male with 5m Coax Cable

Dimensions(mm)

Ø63x380

Weight(kg)

1.0

Reflector Material

PCB

Radome Material

UV-PVC

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52











Horizontal

MIMO Outdoor Omni Antenna
MIMO Omni Antennas










Vertical

MIMO Omn Pole Mount Antennas
MIMO Outdoor Omni Antenna
700-960MHz1710-2690MHz
