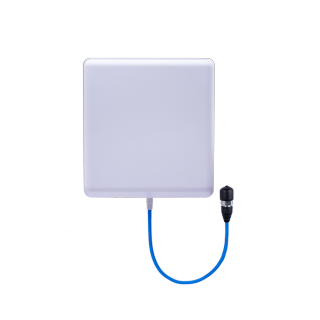

698-2700MHz SISO Outdoor Directional Pole Mount Panel Antennas

Model: DB-698-2700-7-65A-OD-LP
Freq: 698-960MHz, 1710-2700MHz
Gain: 6.5dBi, 9.0dBi
VSWR: ≤2.0, ≤1.8
Polarization: Vertical

698-2700MHz SISO Outdoor Directional Pole Mount Panel Antennas


Electrical Specifications

Frequency Range(MHz)

698-960

1710-2700

Gain(dBi)

6.5

9.0

VSWR

2.0

1.8

Polarization

Vertical

PIM, 3rd Order, 2x20W(dBc)

≤-140 | -150 | -153

Front to Back Ratio(dB), dB

≥10

≥15

Horizontal Beam width

85°

65°

Vertical Beam width

82°

60°

Input Impedance

50 Ω

Max. Input Power

50 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

N | 4.3-10 Female

Dimensions(mm)

168x158x50

Weight(kg)

0.4

Reflector Material

Aluminum

Radome Material

ABS (UV Stabilized)

Operating Temperature

-40°C to +65 °C

Mounting

Wall Mount | Pole Mount










Horizontal

SISO Outdoor Panel Antennas
SISO Outoor Directional Antennas









Vertical

SISO Outdoor Pole Mount Antennas
SISO Outdoor Panel Antennas
700-960MHz1710-2690MHz
