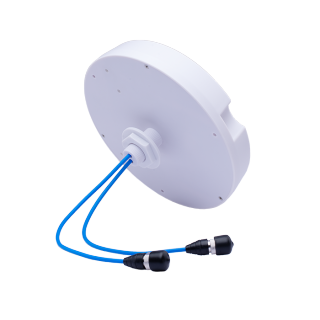

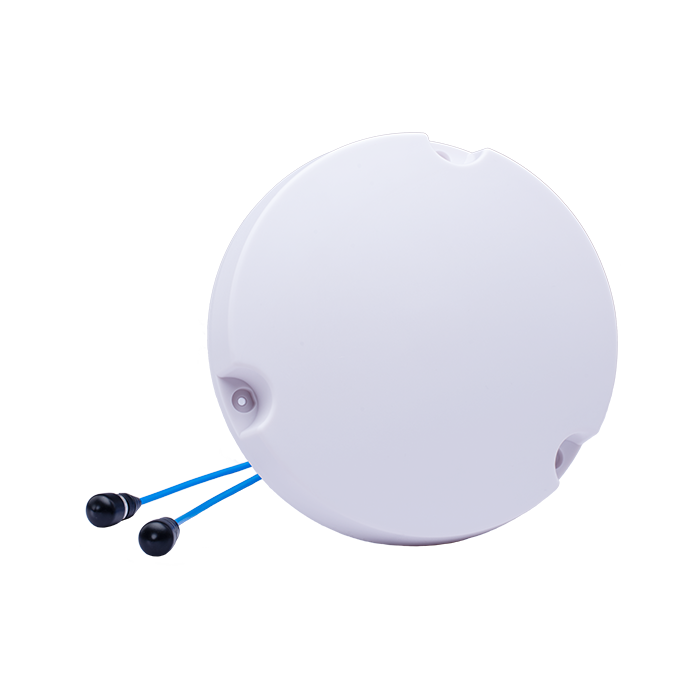

600-6000MHz MIMO Indoor Omni Ceiling Mount Antennas

Model: QX-600-6000S-3A- LP
Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz, 4000-6000MHz
Gain: 2.0dBi, 3.dBi, 4.5dBi, 5.0dBi, 5.5dBi
VSWR: ≤2.2, ≤1.8, ≤1.8, ≤1.8, ≤1.8
Polarization: Linear H | V for each Radiator

600-6000MHz MIMO Indoor Omni Ceiling Mount Antennas


Electrical Specifications

Frequency Range(MHz)

600-698

617-698

698-960

1710-2700

3300-4000

4000-6000

Gain(dBi)

2.0

2.5

3.5

4.5

5.0

5.5

VSWR

≤2.2

≤2.0

≤1.8

≤1.8

≤1.8

≤1.8

Polarization

Linear H | V for each Radiator

Isolation(dB)

>19

>20

>23

PIM, 3rd Order, 2x20W(dBc)

≤-140 | -150 | -153

Horizontal Beam width

360°

Vertical Beam width

110°

95°

90°

46°

38°

30°

Input Impedance

50 Ω

Max. Input Power

50 W

Mechanical Specifications

Connector

2xN | 4.3-10 Female

Dimensions(mm)

Ø215x47

Weight(kg)

0.45

Radome Material

ABS

Operating Temperature

-40°C to +65

Mounting

Ceiling Mount






Horizontal

MIMO Indoor Omni Ceiling Antenna
MIMO Omni Antennas
MIMO Ceiling Antennas
MIMO Indoor Omni Ceiling Antenna




Vertical

MIMO Omni Antennas
MIMO Ceiling Antennas
MIMO Indoor Omni Ceiling Antenna
MIMO Omni Antennas
700-960MHz1710-2690MHz3300-3950MHz4900-5900MHz
