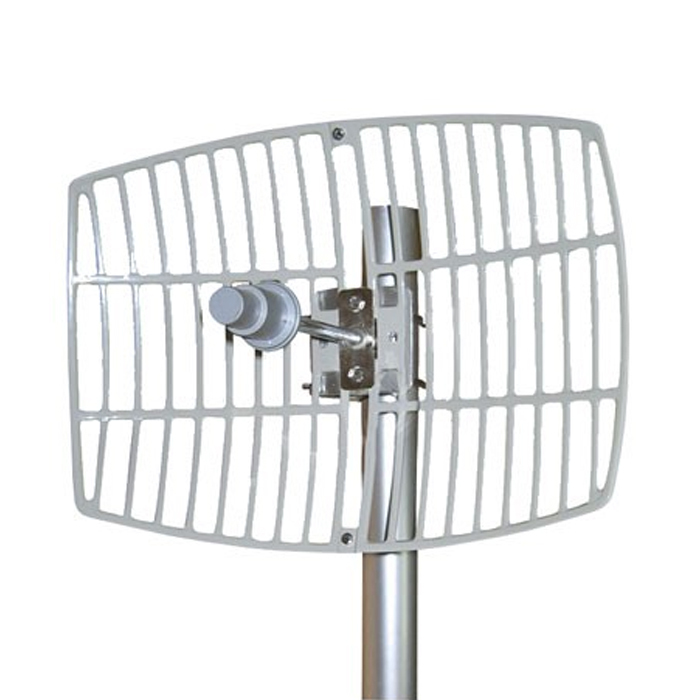

5.8GHz 29dBi Directional Parabolic Grid Antenna

Model: DP-5800-29-0.9
Freq: 5150-5850 MHz
Gain: 29.0 dBi
VSWR: ≤1.8
Polarization: Horizontal or Vertical

5.8GHz 29dBi Directional Parabolic Grid Antenna

Electrical Specifications

Frequency Range(MHz)

5150-5850

Gain(dBi)

29.0

VSWR

1.8

Polarization

Horizontal or Vertical

Front to Back Ratio(dB)

35

Horizontal Beam width

Vertical Beam width

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

N-Female

Dimensions(mm)

600×900

Weight(kg)

3.7

Reflector Material

Aluminum

Rated Wind Velocity

210 km/h

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52

5.8GHz 29dBi Parabolic Grid Antennas
5.8GHz 29dBi Directional Antennas
HorizontalVertical
