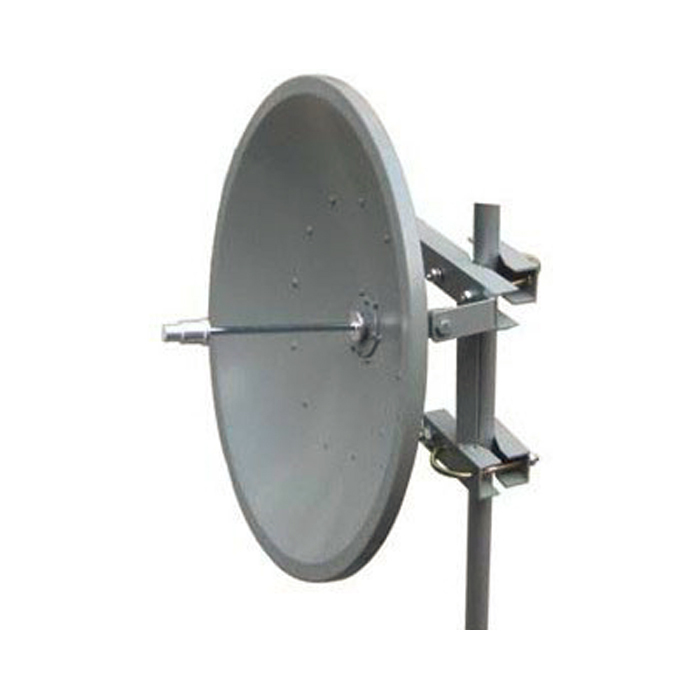

Electrical Specifications | |
Frequency Range(MHz) | 5150-5850 |
Gain(dBi) | 28.0 |
VSWR | ≤1.8 |
Polarization | Horizontal or Vertical |
Front to Back Ratio(dB) | ≥35 |
Horizontal Beam width | 9° |
Vertical Beam width | 7° |
Input Impedance | 50 Ω |
Max. Input Power | 100 W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector | N-Female |
Dimensions(mm) | Ø600 |
Weight(kg) | 5.0 |
Reflector Material | Aluminum |
Rated Wind Velocity | 210 km/h |
Operating Temperature | -40°C to +65 °C |
Mounting Pole(mm) | Ø38-Ø80 |
 |  |
| Horizontal | Vertical |
Model: DP-5800S-32-0.9 Freq: 4900-5900 MHz Gain: 32.0 dBi VSWR: ≤2.0 Polarization: ±90°
MoreModel: DP-5800S-28-0.66 Freq: 4900-5900 MHz Gain: 28.0 dBi VSWR: ≤2.0 Polarization: ±90°
MoreModel: DP-5800S-25-0.45 Freq: 4900-5900 MHz Gain: 25.0 dBi VSWR: ≤2.0, ≤2.0 Polarization: ±90°
MoreModel: DB-5800S-18-20 Freq: 5150-5850 MHz Gain: 18.0 dBi VSWR: ≤2.0 Polarization: ±90°
MoreModel: DB-2400S-18-22 Freq: 2400-2500 MHz Gain: 18.0 dBi VSWR: ≤1.5 Polarization: Horizontal +Vertical
MoreModel: DB-2400S-15-30 Freq: 2400-2500 MHz Gain: 15.0 dBi VSWR: ≤1.5 Polarization: Horizontal + Vertical
MoreModel: DB-2400S-12-65 Freq: 2400-2500 MHz Gain: 12.0 dBi VSWR: ≤1.5 Polarization: ±90°
MoreModel: QJ-2450S-10 Freq: 2400-2500 MHz, 5150-5850 MHz Gain: 8.0±1.0 dBi, 10.0±1.0 dBi VSWR: ≤2.0, ≤2.0 Polarization: Horizontal + Vertical
MoreModel: QJ-2450S-8 Freq: 2400-2500 MHz, 5150-5850 MHz Gain: 6.0±1.0 dBi, 8.0±1.0 dBi VSWR: ≤2.0, ≤2.0 Polarization: Horizontal + Vertical
MoreModel: QJ-5000S-12 Freq: 5150-5850 MHz Gain: 12.0 dBi VSWR: ≤1.8 Polarization: Horizontal + Vertical
