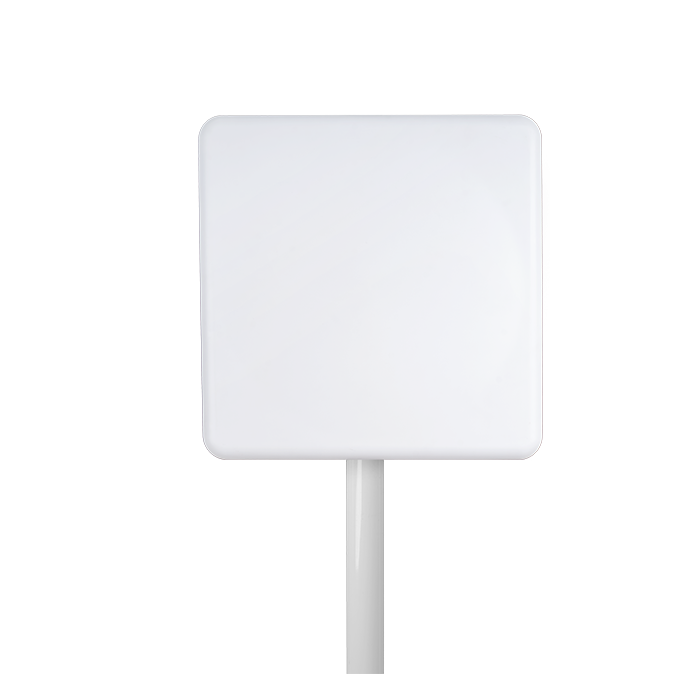

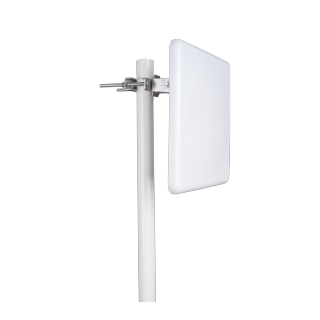

5.8GHz 18dBi MIMO Directional Panel Antenna

Model: DB-5800S-18-20
Freq: 5150-5850 MHz
Gain: 18.0 dBi
VSWR: ≤2.0
Polarization: ±90°

5.8GHz 18dBi MIMO Directional Panel Antenna

Electrical Specifications

Frequency Range(MHz)

5150-5850

Gain(dBi)

18.0

VSWR

2.0

Polarization

±90°

Front to Back Ratio

23

Horizontal Beam width

20°

Vertical Beam width

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

2xN-Female

Dimensions(mm)

305x305x30

Weight(kg)

2.2

Reflector Material

Aluminum

Radome Material

ABS

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52





5500MHz(H)

5.8GHz 18dBi MIMO Directional Antennas
5.8GHz 18dBi MIMO Panel Antennas





5500MHz(V)

5.8GHz 18dBi MIMO Directional Antennas
5.8GHz 18dBi MIMO Panel Antennas
