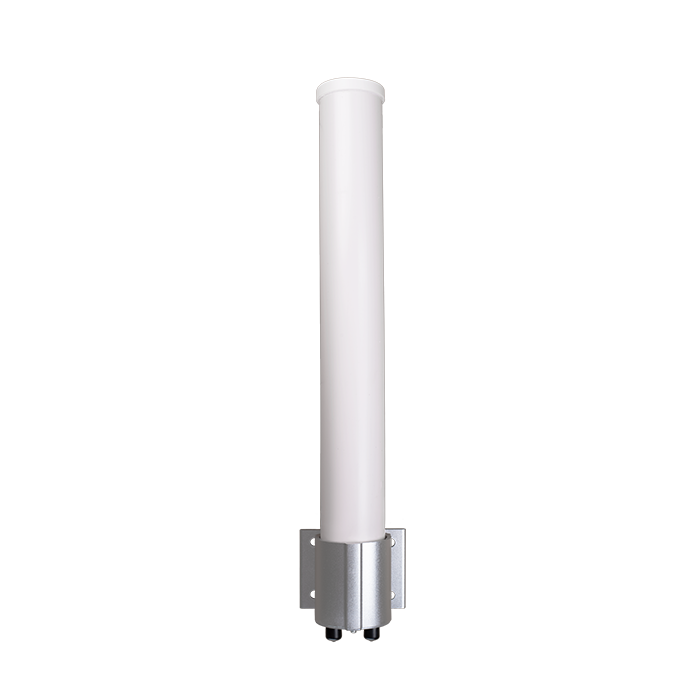

5.8GHz 12dBi MIMO Omni Directional Pole Mount Antenna

Model: QJ-5000S-12
Freq: 5150-5850 MHz
Gain: 12.0 dBi
VSWR: ≤1.8
Polarization: Horizontal + Vertical

5.8GHz 12dBi MIMO Omni Directional Pole Mount Antenna


Electrical Specifications

Frequency Range(MHz)

5150-5850

Gain(dBi)

12

VSWR

1.8

Polarization

Horizontal + Vertical

Port to Port Isolation(dB)

≥ 30

Horizontal Beam width

360°

Vertical Beam width

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

2xN-Female

Dimensions(mm)

Ø70x520

Weight(kg)

2.2

Radome Material

UV-PVC

Rated Wind Velocity

210 km/h

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52








5500MHz(H)

5.8GHz 12dBi MIMO Omni Antennas
5.8GHz 12dBi MIMO Pole Mount Antennas







5500MHz(V)

5.8GHz 12dBi MIMO Omni Antennas

5.8GHz 12dBi MIMO Pole Mount Antennas
