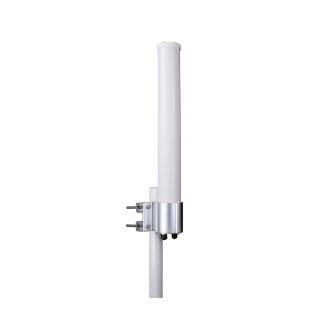

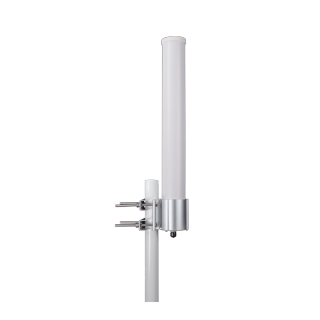

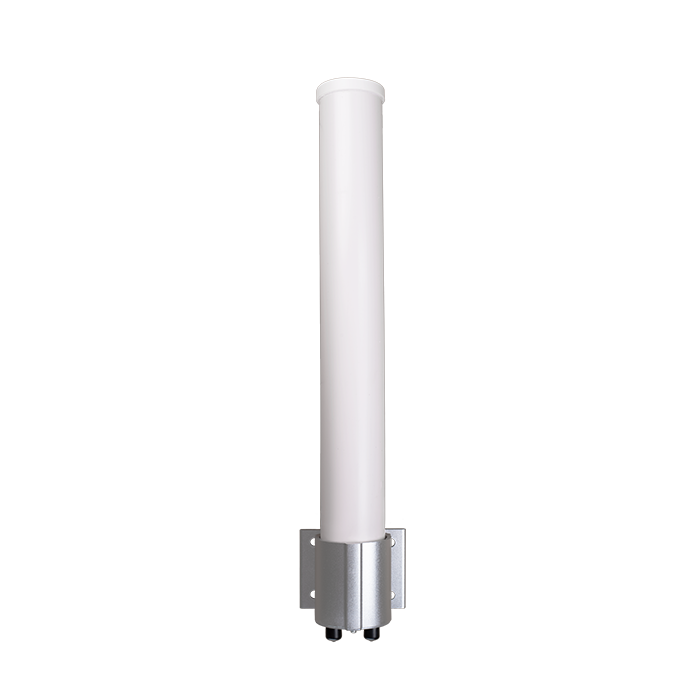

5.8GHz 10dBi MIMO Omni Directional Pole Mount Antenna
Model: QJ-5000S-10
Freq: 5150-5850 MHz
Gain: 10.0 dBi
VSWR: ≤1.8
Polarization: Horizontal + Vertical
Electrical Specifications | |
Frequency Range(MHz) | 5150-5850 |
Gain(dBi) | 10 |
VSWR | ≤1.8 |
Polarization | Horizontal + Vertical |
Port to Port Isolation(dB) | ≥ 30 |
Horizontal Beam width | 360° |
Vertical Beam width | 10° |
Input Impedance | 50 Ω |
Max. Input Power | 100 W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector | 2xN-Female |
Dimensions(mm) | Ø70x490 |
Weight(kg) | 2.0 |
Radome Material | UV-PVC |
Rated Wind Velocity | 210 km/h |
Operating Temperature | -40°C to +65 °C |
Mounting Pole(mm) | Ø38-Ø52 |
5500MHz(H) |  |  |
5500MHz(V) |  |  |
