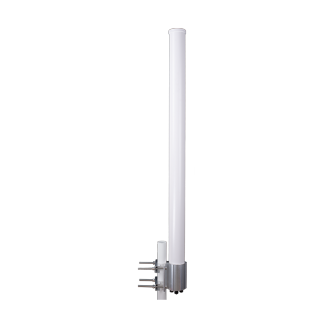

2.4GHz 5.8GHz 8-10dBi 4-Port Omni Directional Antenna

Model: QJ-2450S-10
Freq: 2400-2500 MHz, 5150-5850 MHz
Gain: 8.0±1.0 dBi, 10.0±1.0 dBi
VSWR: ≤2.0, ≤2.0
Polarization: Horizontal + Vertical

2.4GHz 5.8GHz 8-10dBi 4-Port Omni Directional Antenna


Electrical Specifications

Frequency Range(MHz)

2400-2500

5150-5850

Gain(dBi)

8.0±1.0

10.0±1.0

VSWR

2.0

2.0

Polarization

Horizontal + Vertical

Horizontal + Vertical

Port to Port Isolation(dB)

≥ 28

Horizontal Beam width

360°

Vertical Beam width

13°

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

4xN-Female

Dimensions(mm)

Ø70x1180

Weight(kg)

3.8 kg

Radome Material

UV-PVC

Rated Wind Velocity

210 km/h

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52




     2450MHz(H)

2.4GHz 5.8GHz 8-10dBi Omni Antennas




2450H01

2.4GHz 5.8GHz 4-Port Omni Antennas




2450H02





5500MHz(V)

2.4GHz 5.8GHz 8-10dBi Omni Antennas




5500V01

2.4GHz 5.8GHz 4-Port Omni Antennas




5500V02
