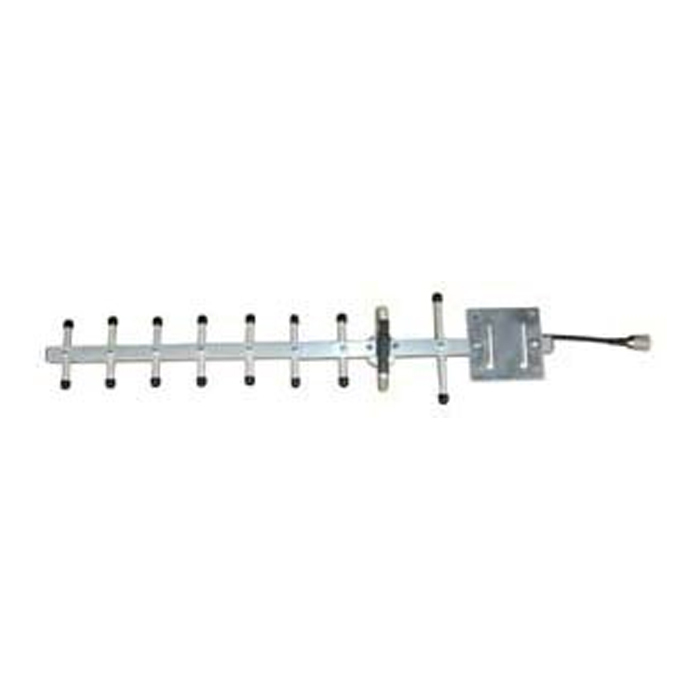

• 2.4GHz 12dBi Directional Yagi Antenna

2.4GHz 12dBi Directional Yagi Antenna

Model: BM-2400-12-9
Freq: 2400-2500 MHz
Gain: 12.0 dBi
VSWR: ≤1.5
Polarization: Horizontal or Vertical

2.4GHz 12dBi Directional Yagi Antenna


Electrical Specifications

Frequency Range(MHz)

2400-2500

Gain(dBi)

12.0

VSWR

1.5

Polarization

Horizontal or Vertical

Front to Back Ratio(dB)

15

Horizontal Beam width

47°

Vertical Beam width

42°

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

N-Female

Dimensions(mm)

350

Weight(kg)

0.3

Reflector Material

Aluminum

Rated Wind Velocity

210 km/h

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52


2.4GHz 12dBi Directional Yagi Antenna
2.4GHz 12dBi Yagi Antenna
Horizontal  Vertical
