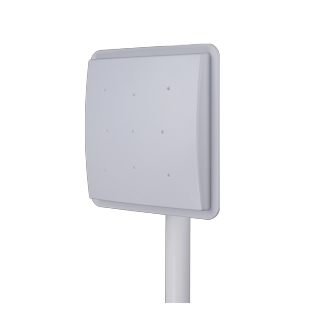

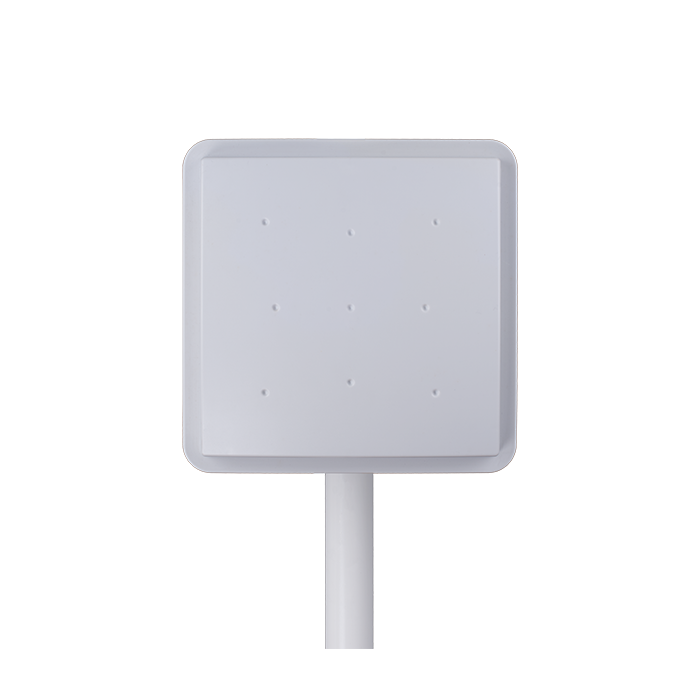

902-928MHz 9dBi Outdoor RFID Panel Antennas

Model: DB-900-9-60-C/DB-900-9-60-H/DB-900-9-60-V
Freq: 902-928 MHz
Gain: 9.0 dBi
VSWR: ≤1.3
Polarization: Circular/Horizonta/Vertical

902-928MHz 9dBi Outdoor RFID Panel Antennas

Electrical Specifications

Frequency Range(MHz)

902-928

902-928

902-928

Gain(dBi)

9.0

9.0

9.0

VSWR

≤1.3

≤1.3

≤1.3

Polarization

Circular

Horizontal

Vertical

Horizontal Beam width

71°

66°

72°

Vertical Beam width

62°

72°

64°

Input Impedance

50 Ω

50 Ω

50 Ω

Max. Input Power

50 W

50 W

50 W

Lightning Protection

DC Ground

DC Ground

DC Ground

Mechanical Specifications

Connector

N-Female

N-Female

N-Female

Dimensions(mm)

260×260×45

260×260×45

260×260×45

Weight(kg)

1.0

1.0

1.0

Reflector Material

Aluminum

Aluminum

Aluminum

Radome Material

ABS

ABS

ABS

Ingress Protection

IP65

IP65

IP65

Operating Temperature

-40°C to +65°C

-40°C to +65°C

-40°C to +65°C

Mounting Pole(mm)

Ø38-Ø52

Ø38-Ø52

Ø38-Ø52

902-928MHz 9dBi RFID Antennas
902-928MHz RFID Antennas
Horizontal(915MHz)Vertical(915MHz)
