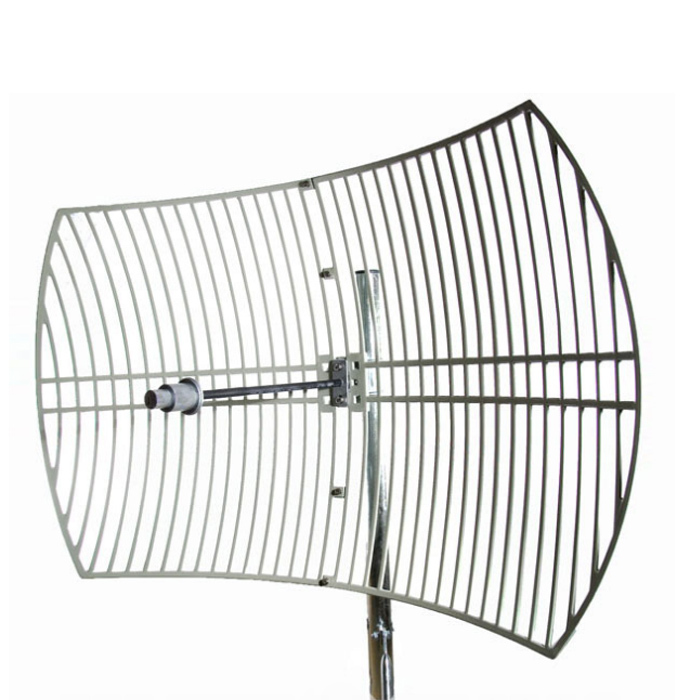

Electrical Specifications | |
Frequency Range(MHz) | 3400-3600 |
Gain(dBi) | 24.0 |
VSWR | ≤1.5 |
Polarization | Horizontal or Vertical |
Front to Back Ratio(dB) | ≥30 |
Horizontal Beam width | 9.5° |
Vertical Beam width | 6.5° |
Input Impedance | 50 Ω |
Max. Input Power | 100 W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector | N-Female |
Dimensions(mm) | 600×900 |
Weight(kg) | 3.6 |
Reflector Material | Aluminum |
Rated Wind Velocity | 210 km/h |
Operating Temperature | -40°C to +65 °C |
Mounting Pole(mm) | Ø38-Ø52 |
 |  |
| Horizontal | Vertical |
Model: DP-3500-22-0.4 Freq: 3400-3600 MHz Gain: 22.0 dBi VSWR: ≤1.5 Polarization: Horizontal or Vertical
MoreModel: DP-3500-18-0.3 Freq: 3400-3600 MHz Gain: 18.0 dBi VSWR: ≤1.5 Polarization: Horizontal or Vertical
MoreModel: DB-3500-18-65 Freq: 3400-3600 MHz Gain: 18.0 dBi VSWR: ≤1.5 Polarization: Vertical
MoreModel: DB-3500-16-120 Freq: 3400-3600 MHz Gain: 16.0 dBi VSWR: ≤1.5 Polarization: Vertical
MoreModel: DB-3500-14-90 Freq: 3400-3600 MHz Gain: 14.0 dBi VSWR: ≤1.5 Polarization: Vertical
MoreModel: DB-3500-12-65 Freq: 3400-3600 MHz Gain: 12.0 dBi VSWR: ≤1.5 Polarization: Vertical
MoreModel: DB-3500-10-120 Freq: 3400-3600 MHz Gain: 10.0 dBi VSWR: ≤1.5 Polarization: Vertical
MoreModel: DB-3500-15-30 Freq: 3400-3600 MHz Gain: 15.0 dBi VSWR: ≤1.5 Polarization: Vertical
MoreModel: QJ-3500-12 Freq: 3400-3600 MHz Gain: 12.0 dBi VSWR: ≤1.5 Polarization: Vertical
MoreModel: QJ-3500-11 Freq: 3400-3600 MHz Gain: 11.0 dBi VSWR: ≤1.5 Polarization: Vertical
