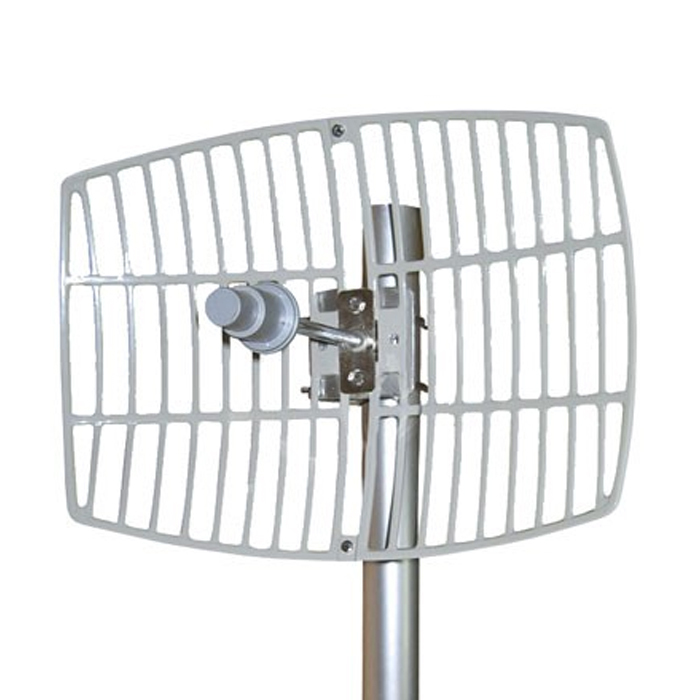

3.5GHz 18dBi WiMax Directional Parabolic Grid Antennas

Model: DP-3500-18-0.3
Freq: 3400-3600 MHz
Gain: 18.0 dBi
VSWR: ≤1.5
Polarization: Horizontal or Vertical

3.5GHz 18dBi WiMax Directional Parabolic Grid Antennas

Electrical Specifications

Frequency Range(MHz)

3400-3600

Gain(dBi)

18.0

VSWR

1.5

Polarization

Horizontal or Vertical

Front to Back Ratio(dB)

≥25

Horizontal Beam width

17°

Vertical Beam width

16.5°

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

N-Female

Dimensions(mm)

300×400

Weight(kg)

2.0

Reflector Material

Aluminum

Rated Wind Velocity

210 km/h

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52

3.5Ghz 18dBi Directional Antennas
3.5Ghz 18dBi Parabolic Grid Antennas
HorizontalVertical
