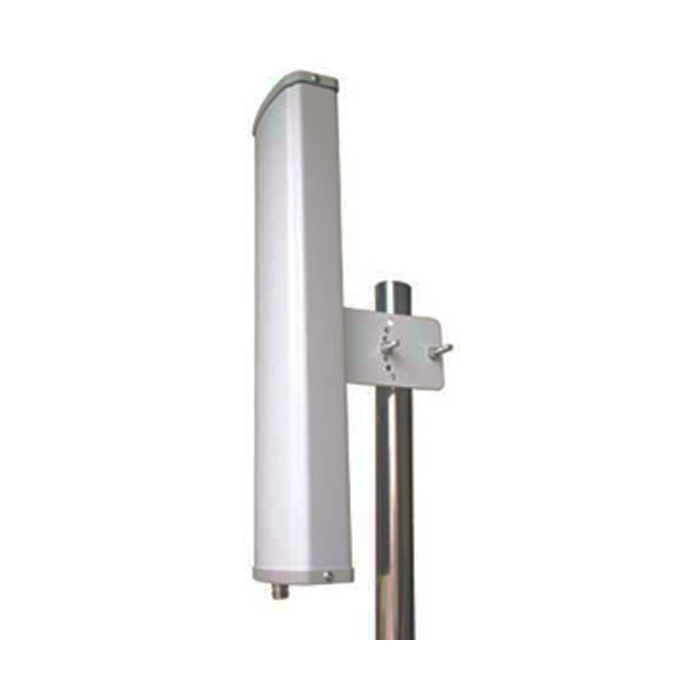

• 3.5GHz 12dBi 65° WiMax Directional Sector Antennas
3.5GHz 12dBi 65° WiMax Directional Sector Antennas

Model: DB-3500-12-65
Freq: 3400-3600 MHz
Gain: 12.0 dBi
VSWR: ≤1.5
Polarization: Vertical

3.5GHz 12dBi 65° WiMax Directional Sector Antennas

Electrical Specifications

Frequency Range(MHz)

3400-3600

Gain(dBi)

12.0

VSWR

1.5

Polarization

Vertical

Front to Back Ratio(dB)

≥23

Horizontal Beam width

65°

Vertical Beam width

33°

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

N-Female

Dimensions(mm)

210×115×55

Weight(kg)

1.2

Reflector Material

Aluminum

Radome Material

UV-PVC

Rated Wind Velocity

210 km/h

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52

3.5Ghz 12dBi 65° Directional Antennas
3.5Ghz 12dBi 65° Sector Antennas
HorizontalVertical
