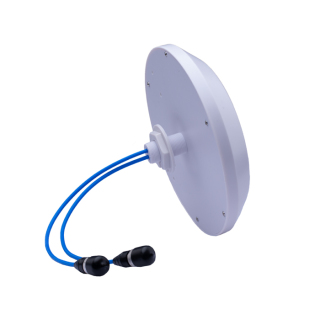

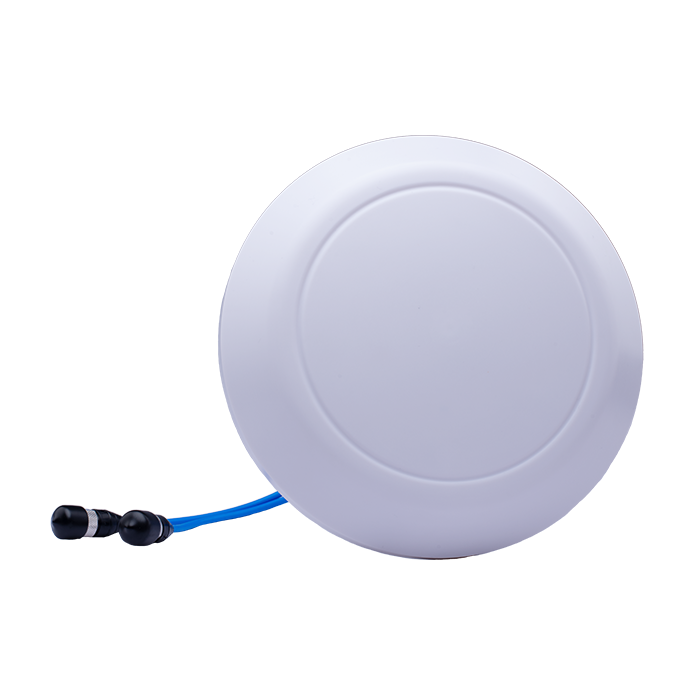

698-2700MHz MIMO 3dBi Indoor Omni Ceiling Mount Antennas

Model: QX-698-2700S-3B- LP
Freq: 698-960MHz, 1710-2700MHz
Gain: 3.5dBi, 4.5dBi
VSWR: ≤1.8, ≤1.8
Polarization: Linear H | V for each Radiator

698-2700MHz MIMO 3dBi Indoor Omni Ceiling Mount Antennas


Electrical Specifications

Frequency Range(MHz)

698-960

1710-2700

Gain(dBi)

3.5

4.5

VSWR

≤1.8

≤1.8

Polarization

Linear H | V for each Radiator

Isolation(dB)

>19

>20

PIM, 3rd Order, 2x20W(dBc)

≤-140 | -150 | -153

Horizontal Beam width

360°

Vertical Beam width

90°

46°

Input Impedance

50 Ω

Max. Input Power

50 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

2xN | 4.3-10 Female

Dimensions(mm)

Ø215x47

Weight(kg)

0.45

Radome Material

ABS (UV Stabilized)

Operating Temperature

-40°C to +65

Mounting

Ceiling Mount









Horizontal

MIMO Indoor Omni CeilingAntenna
MIMO Omni Antennas







Vertical

MIMO Ceiling Antennas
MIMO Indoor Omni CeilingAntenna
700-960MHz1710-2690MHz
