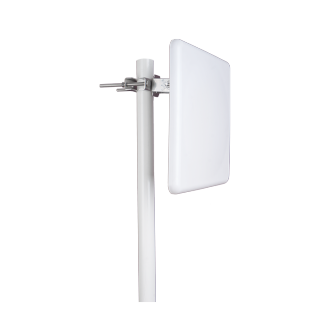

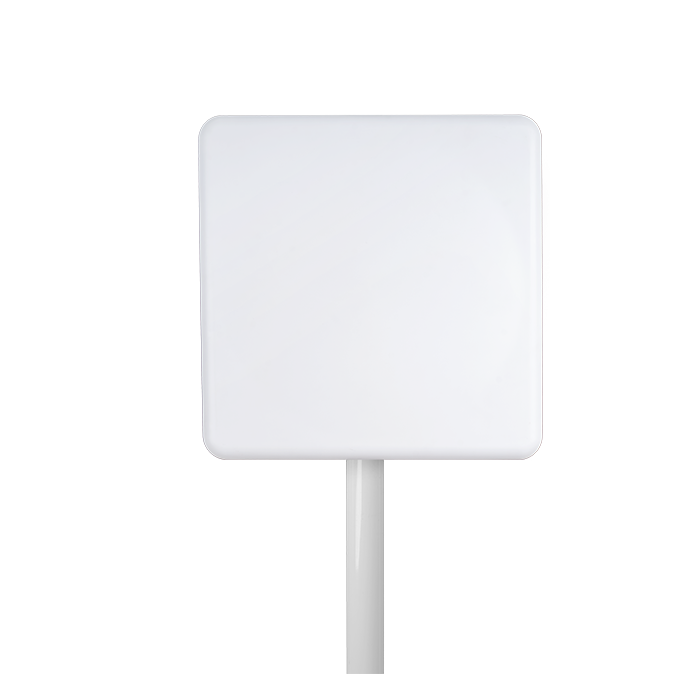

5.8GHz 23dBi Directional Panel Antenna

Model: DB-5800-23-11
Freq: 5150-5850 MHz
Gain: 23.0dBi
VSWR: ≤1.8
Polarization: Vertical

5.8GHz 23dBi Directional Panel Antenna


Electrical Specifications

Frequency Range(MHz)

5150-5850

Gain(dBi)

23.0

VSWR

1.8

Polarization

Vertical

Front to Back Ratio(dB)

30

Horizontal Beam width

11°

Vertical Beam width

11°

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

N-Female

Dimensions(mm)

385×385×30

Weight(kg)

2.3

Reflector Material

Aluminum

Radome Material

ABS

Operating Temperature

-40°C to +65 °C


5.8GHz 23dBi Directional Panel Antennas
5.8GHz 23dBi Panel Antennas
HorizontalVertical
