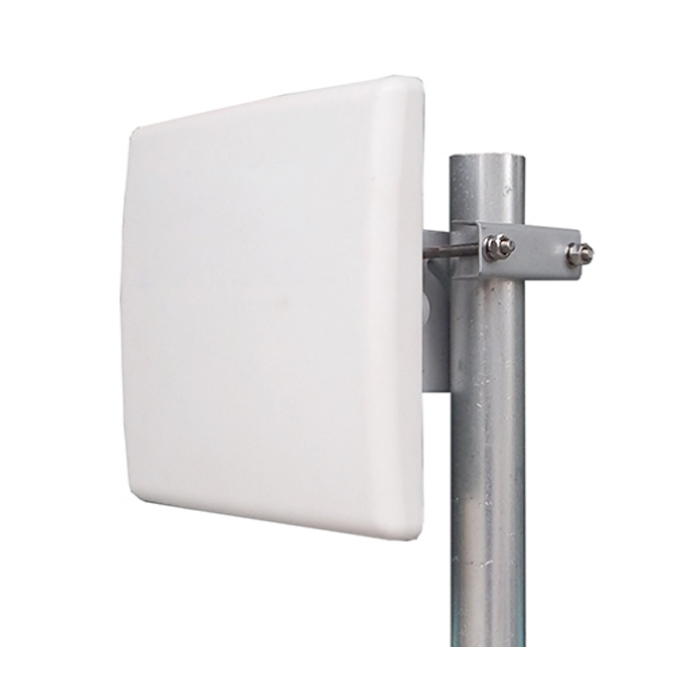

2.4GHz 5.8GHz 9dBi Dual-band MIMO Directional Antenna

Model: DB-2458S-9-12
Freq: 2400-2500 MHz, 5150-5850 MHz
Gain: 9.0 dBi, 12.0 dBi
VSWR: ≤1.5, ≤2.0
Polarization: Horizontal + Vertical

2.4GHz 5.8GHz 9dBi Dual-band MIMO Directional Antenna


Electrical Specifications

Frequency Range(MHz)

2400-2500

5150-5850

Gain(dBi)

9.0

12.0

VSWR

1.5

2.0

Polarization

Horizontal +Vertical

Horizontal +Vertical

Front to Back Ratio(dB)

20

23

Horizontal Beam width

65°

35°

Vertical Beam width

60°

32°

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

4×N-Female

Dimensions(mm)

190×190×30

Weight(kg)

0.65 kg

Reflector Material

Aluminum

Radome Material

ABS

Rated Wind Velocity

210 km/h

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

  Ø38-Ø52








Horizontal

2.4GHz 5.8GHz 9dBi Directional Antennas
2.4GHz 5.8GHz 9dBi Panel Antennas








Vertical

2.4GHz 5.8GHz 9dBi Directional Antennas
2.4GHz 5.8GHz 9dBi Panel Antennas
2450MHz  5500MHz
