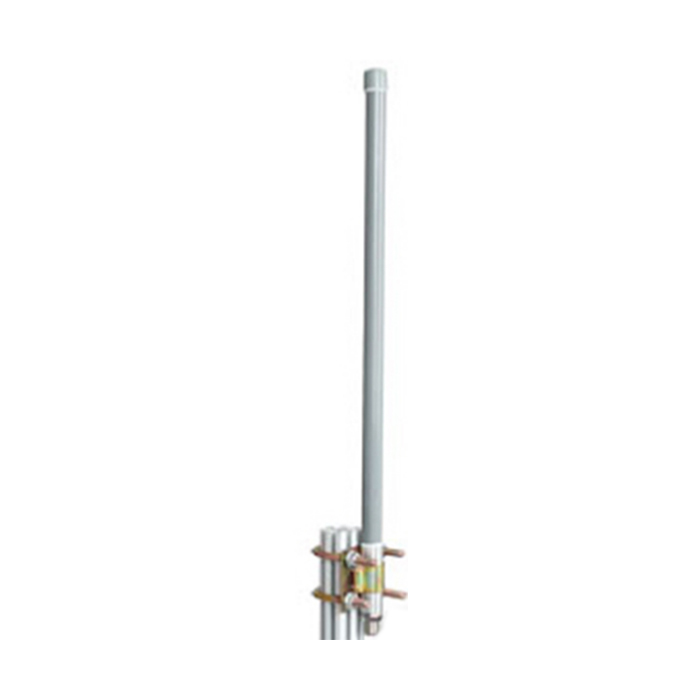

2.4GHz 5.8GHz 6dBi Dual-band Omni Directional Antenna
Model: QJ-2458-6
Freq: 2400-2500 MHz, 5150-5950 MHz
Gain: 5.0 dBi, 6.0 dBi
VSWR: ≤2.0
Polarization: Vertical
Electrical Specifications | ||
Frequency Range(MHz) | 2400-2500 | 5150-5850 |
Gain(dBi) | 5.0 | 6.0 |
VSWR | ≤2.0 | |
Polarization | Vertical | |
Horizontal Beam width | 360° | |
Vertical Beam width | 28° | 22° |
Input Impedance | 50 Ω | |
Max. Input Power | 100 W | |
Lightning Protection | DC Ground | |
Mechanical Specifications | ||
Connector | N-Female | |
Dimensions(mm) | Ø20×600 | |
Weight(kg) | 0.8 | |
Reflector Material | Copper | |
Radome Material | Fiberglass | |
Rated Wind Velocity | 210 km/h | |
Operating Temperature | -40°C to +65 °C | |
Mounting Pole(mm) | Ø38-Ø52 | |
Horizontal |  |  |
Vertical |  |  |
| 2450MHz | 5500MHz |
