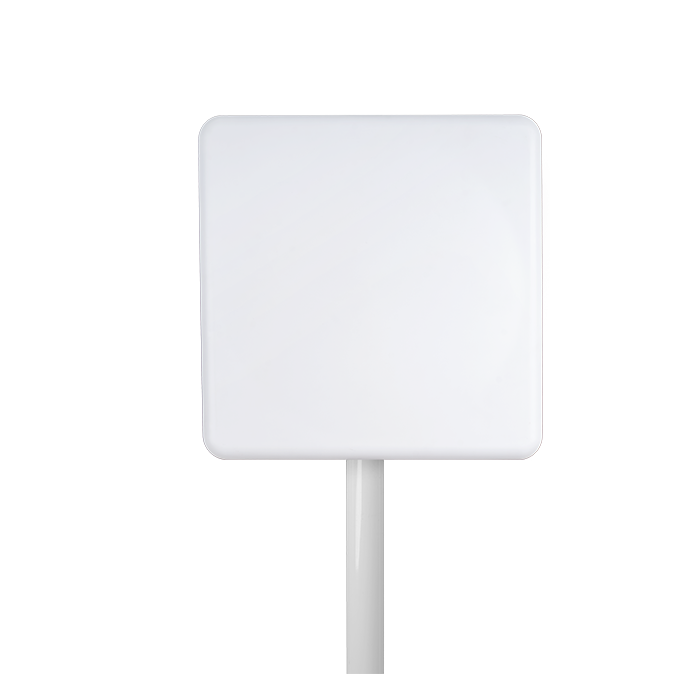

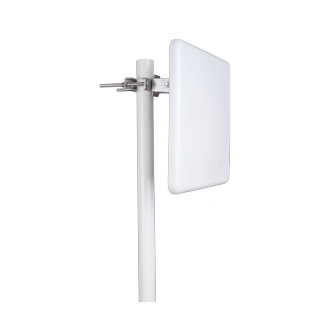

2.4GHz 5.8GHz 15dBi Dual-band MIMO Panel Antenna

Model: DB-2458S-15-30
Freq: 2400-2500 MHz, 5150-5850 MHz
Gain: 15.0±1.0 dBi, 17.0±1.0 dBi
VSWR: ≤1.5, ≤2.0
Polarization: Horizontal +Vertical

2.4GHz 5.8GHz 15dBi Dual-band MIMO Panel Antenna


Electrical Specifications

Frequency Range(MHz)

2400-2500

5150-5850

Gain(dBi)

15.0±1.0

17.0±1.0

VSWR

1.5

2.0

Polarization

Horizontal +Vertical

Horizontal +Vertical

Front to Back Ratio(dB)

25

Horizontal Beam width

30±5°

Vertical Beam width

25±3°

18±3°

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

4×N-Female

Dimensions(mm)

305×305×30

Weight(kg)

1.6 kg

Reflector Material

Aluminum

Radome Material

ABS

Rated Wind Velocity

210 km/h

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52








Horizontal

2.4GHz 5.8GHz 15dBi Directional Antennas
2.4GHz 5.8GHz 15dBi Panel Antennas







Vertical

2.4GHz 5.8GHz 15dBi Directional Antennas
2.4GHz 5.8GHz 15dBi Panel Antennas
2450MHz  5500MHz
