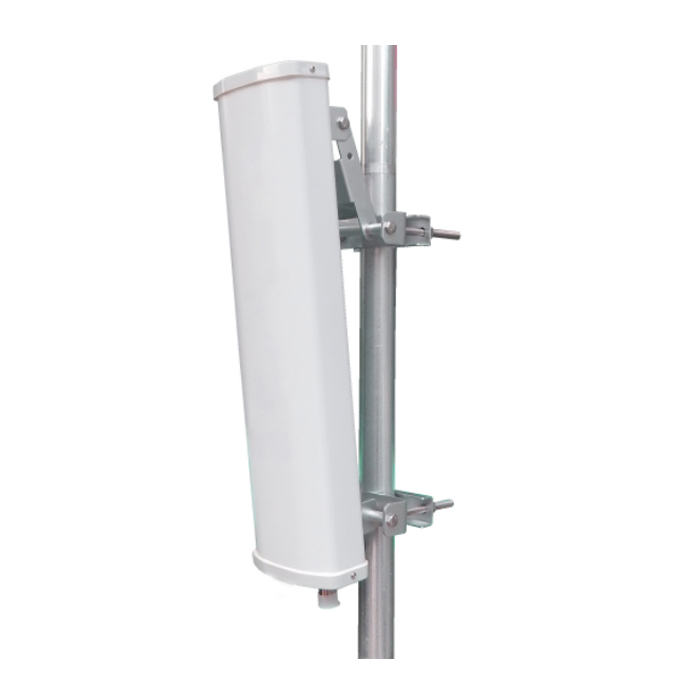

• 2.4GHz 18dBi 65° Directional Sector Antenna

2.4GHz 18dBi 65° Directional Sector Antenna

Model: DB-2400-18-65
Freq: 2400-2500 MHz
Gain: 18.0 dBi
VSWR: ≤1.5
Polarization: Vertical

2.4GHz 18dBi 65° Directional Sector Antenna


Electrical Specifications

Frequency Range(MHz)

2400-2500

Gain(dBi)

18.0

VSWR

1.5

Polarization

Vertical

Front to Back Ratio(dB)

≥28

Horizontal Beam width

65°

Vertical Beam width

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

N-Female

Dimensions(mm)

970×180×90

Weight(kg)

4.0

Reflector Material

Aluminum

Radome Material

UV-PVC

Rated Wind Velocity

210 km/h

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52


2.4GHz 18dBi 65° Sector Antenna
2.4GHz 18dBi 65° Directional Antenna
HorizontalVertical
