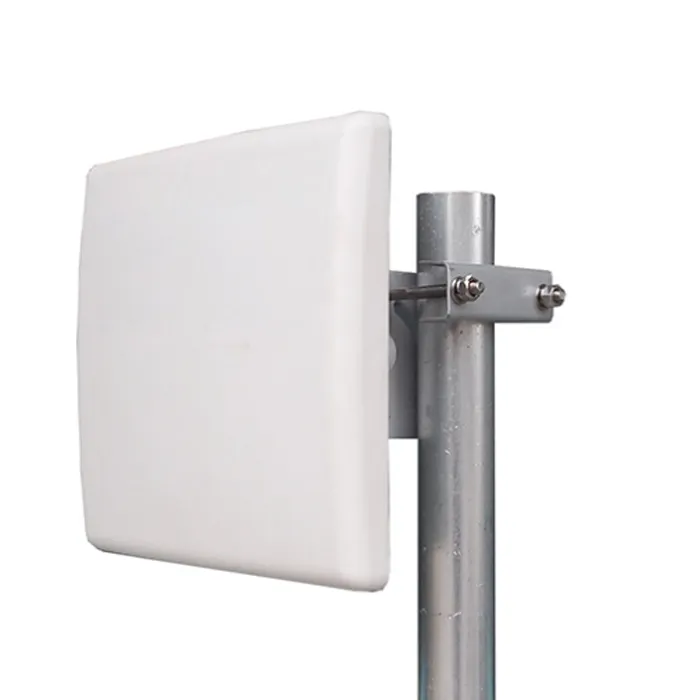

2.4GHz 12dBi MIMO Directional Panel Antenna

Model: DB-2400S-12-65
Freq: 2400-2500 MHz
Gain: 12.0 dBi
VSWR: ≤1.5
Polarization: ±90°

2.4GHz 12dBi MIMO Directional Panel Antenna

Electrical Specifications

Frequency Range(MHz)

2400-2500

Gain(dBi)

12.0

VSWR

1.5

Polarization

±90°

Front to Back Ratio

25

Horizontal Beam width

65°

Vertical Beam width

30°

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

2xN-Female

Dimensions(mm)

190x190x30

Weight(kg)

0.65

Reflector Material

Aluminum

Radome Material

ABS

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52



2450MHz(H)

2.4GHz 12dBi MIMO Panel Antennas




2450H01

2.4GHz 12dBi MIMO Directional Antennas




2450H02




5500MHz(V)

2.4GHz 12dBi MIMO Panel Antennas




2450V01

2.4GHz 12dBi MIMO Directional Antennas




2450V02
