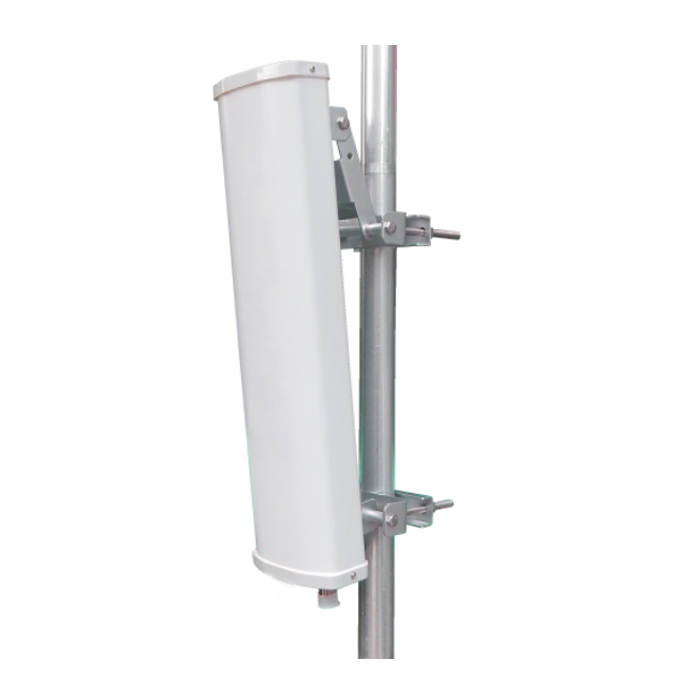

• 2.4GHz 11dBi 90° Directional Sector Antenna

2.4GHz 11dBi 90° Directional Sector Antenna

Model: DB-2400-11-90
Freq: 2400-2500 MHz
Gain: 11.0 dBi
VSWR: ≤1.5
Polarization: Vertical

2.4GHz 11dBi 90° Directional Sector Antenna


Electrical Specifications

Frequency Range(MHz)

2400-2500

Gain(dBi)

11.0

VSWR

1.5

Polarization

Vertical

Front to Back Ratio(dB)

19

Horizontal Beam width

90°

Vertical Beam width

35°

Input Impedance

50 Ω

Max. Input Power

100 W

Lightning Protection

DC Ground

Mechanical Specifications

Connector

N-Female

Dimensions(mm)

300×180×90

Weight(kg)

1.8

Reflector Material

Aluminum

Radome Material

UV-PVC

Rated Wind Velocity

210 km/h

Operating Temperature

-40°C to +65 °C

Mounting Pole(mm)

Ø38-Ø52


2.4GHz 11dBi 90° Sector Antenna
2.4GHz 11dBi 90° Directional Antenna
HorizontalVertical
