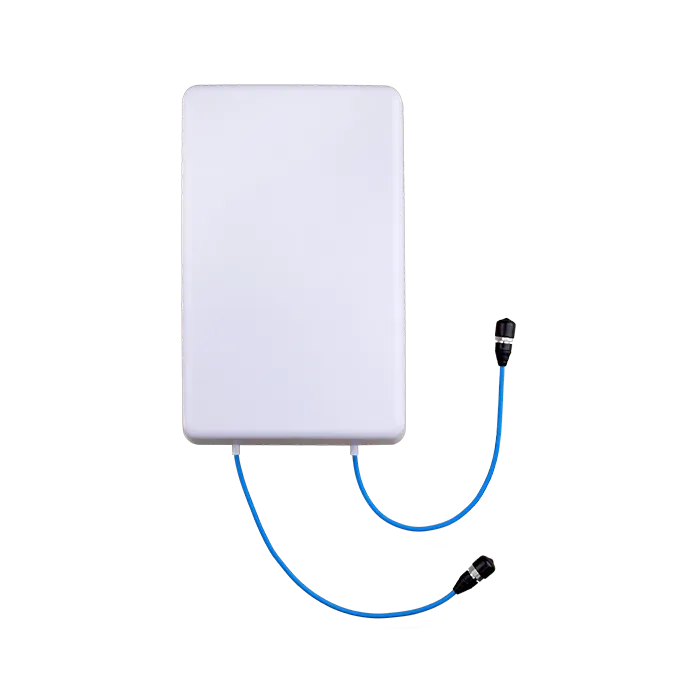

Model: DB-698-2700S-9-65A-LP
Freq: 698-960MHz, 1710-2700MHz
Gain: 5.5dBi, 8.5dBi
VSWR: ≤2.0, ≤1.8
Polarization: ±45°
Electrical Specifications | |||||
Frequency Range(MHz) | 698-960 | 1710-2700 | |||
Gain(dBi) | 5.5 | 8.5 | |||
VSWR | ≤2.0 | ≤1.8 | |||
Polarization | ±45° | ||||
Isolation(dB) | ≥12 | ≥20 | |||
Front to Back Ratio(dB) | ≥10 | ≥13 | |||
PIM, 3rd Order, 2x20W(dBc) | ≤-140 | -150 | -153 | ||||
Horizontal Beam width | 90° | 65° | |||
Vertical Beam width | 78° | 60° | |||
Input Impedance | 50 Ω | ||||
Max. Input Power | 50 W | ||||
Lightning Protection | DC Ground | ||||
Mechanical Specifications | |||||
Connector | 2xN | 4.3-10 Female | ||||
Dimensions(mm) | |||||
Weight(kg) | 0.78 | ||||
Reflector Material | Aluminum and PCB | ||||
Radome Material | ABS (UV Stabilized) | ||||
Operating Temperature | -40°C to +65°C | ||||
Mounting | Wall Mount | Pole Mount | ||||
Horizontal |  |  |
Vertical |  |  |
| 700-960MHz | 1710-2690MHz |
