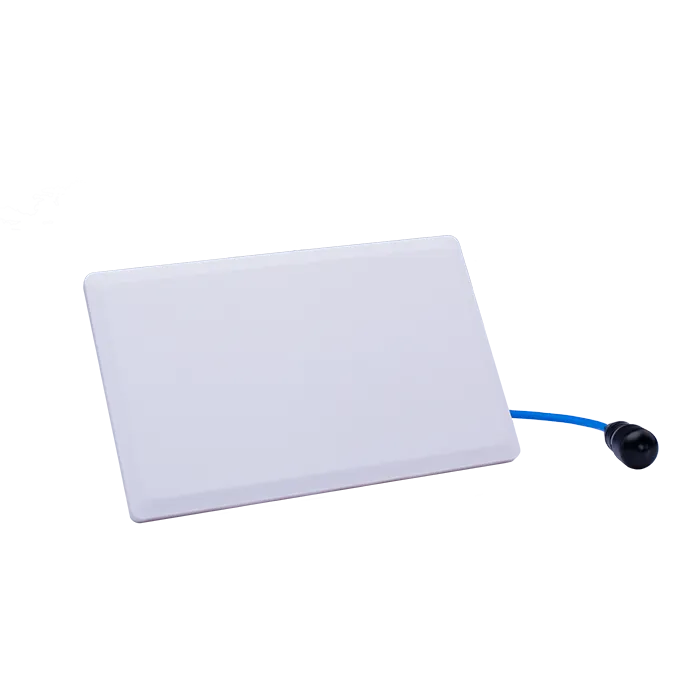

Model: QX-600-6000-4-LP Freq: 600-698MHz, 698-960MHz, 1710-2700MHz, 3300-4000MHz, 4000-6000MHz Gain: 3.0dBi, 3.5dBi, 4.0dBi, 5.5dBi, 5.5dBi VSWR: ≤2.5, ≤1.8, ≤1.8, ≤1.8, ≤1.8 Polarization: Horizontal
Electrical Specifications
Frequency Range(MHz)
600-698
617-698
698-960
1710-2700
3300-4000
4000-6000
Gain(dBi)
3.0
3.5
4.0
5.5
VSWR
≤2.5
≤2.0
≤1.8
Polarization
Horizontal
PIM, 3rd Order, 2x20W(dBc)
≤-140 | -150 | -153
Horizontal Beam width
360°
Vertical Beam width
118°
85°
75°
63°
45°
Input Impedance
50 Ω
Max. Input Power
50 W
Mechanical Specifications
Connector
N | 4.3-10 Female
Dimensions(mm)
180x113x7.0
Weight(kg)
0.2
Color
White
Radome Material
ABS
Operating Temperature
-40°C to +65 °C
Mounting
Ceiling Mount
Vertical
