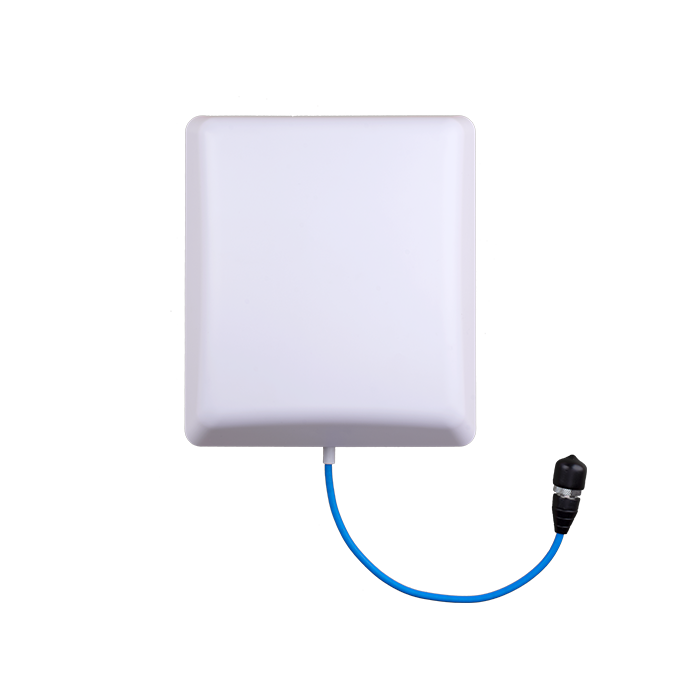

600-4000MHz SISO Outdoor Directional Pole Mount Panel Antennas
Model: DB-600-4000-7-65A-OD-LP
Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz
Gain: 5.0dBi, 6.5dBi, 9.0dBi, 7.0dBi
VSWR: ≤2.3, ≤2.0, ≤1.8, ≤1.8
Polarization: Vertical
Electrical Specifications | |||||
Frequency Range(MHz) | 600-698 | 617-698 | 698-960 | 1710-2700 | 3300-4000 |
Gain(dBi) | 5.0 | 5.0 | 6.5 | 9.0 | 7.0 |
VSWR | ≤2.3 | ≤2.3 | ≤2.0 | ≤1.8 | ≤1.8 |
Polarization | Vertical | ||||
PIM, 3rd Order, 2x20W(dBc) | ≤-140 | -150 | -153 | ||||
Front to Back Ratio(dB), dB | ≥9 | ≥10 | ≥15 | ≥11 | |
Horizontal Beam width | 95° | 100° | 85° | 65° | 50° |
Vertical Beam width | 95° | 90° | 82° | 60° | 45° |
Input Impedance | 50 Ω | ||||
Max. Input Power | 50 W | ||||
Mechanical Specifications | |||||
Connector | N | 4.3-10 Female | ||||
Dimensions(mm) | 180×158×60 | ||||
Weight(kg) | 0.4 | ||||
Radome Material | ABS | ||||
Operating Temperature | -40°C to +65 °C | ||||
Mounting | Wall Mount | Pole Mount | ||||
Horizontal |  |  |  |
Vertical |  |  |  |
| 700-960MHz | 1710-2690MHz | 3300-3950MHz |
