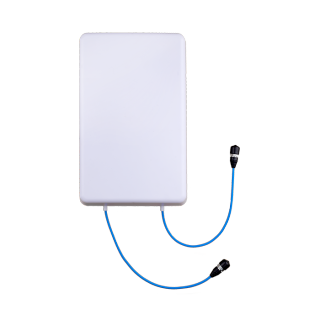

600-4000MHz MIMO Indoor Directional Wall Mount Panel Antennas

Model: DB-600-4000S-9-65A-ID-LP
Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz
Gain: 5.0dBi, 5.5dBi, 8.5dBi, 7.0dBi
VSWR: ≤2.5, ≤2.0, ≤1.8, ≤2.0
Polarization: Horizontal + Vertical

600-4000MHz MIMO Indoor Directional Wall Mount Panel Antennas


Electrical Specifications

Frequency Range(MHz)

600-698

617-698

698-960

1710-2700

3300-4000

Gain(dBi)

5.0

5.0

5.5

8.5

7.0

VSWR

≤2.5

≤2.5

≤2.0

≤1.8

≤2.0

Polarization

Horizontal + Vertical

Isolation(dB)

10

≥11

12

20

≥24

Front to Back Ratio(dB)

≥7

≥8

≥10

≥13

≥10

PIM, 3rd Order, 2x20W(dBc)

≤-140 | -150 | -153

Horizontal Beam width

100°

98°

90°

65°

45°

Vertical Beam width

83°

80°

78°

60°

38°

Input Impedance

50 Ω

Max. Input Power

50 W

Mechanical Specifications

Connector

2xN | 4.3-10 Female

Dimensions(mm)

315x195x68

Weight(kg)

0.78

Radome Material

ABS

Operating Temperature

-40°C to +65°C

Mounting

Wall Mount | Pole Mount






Horizontal

MIMO Indoor Panel Antennas
MIMO Indoor Directional Antennas
MIMO Indoor Wall Mount Antennas





Vertical

MIMO Indoor Panel Antennas
MIMO Indoor Directional Antennas
MIMO Indoor Wall Mount Antennas
700-960MHz1710-2690MHz3300-3950MHz
