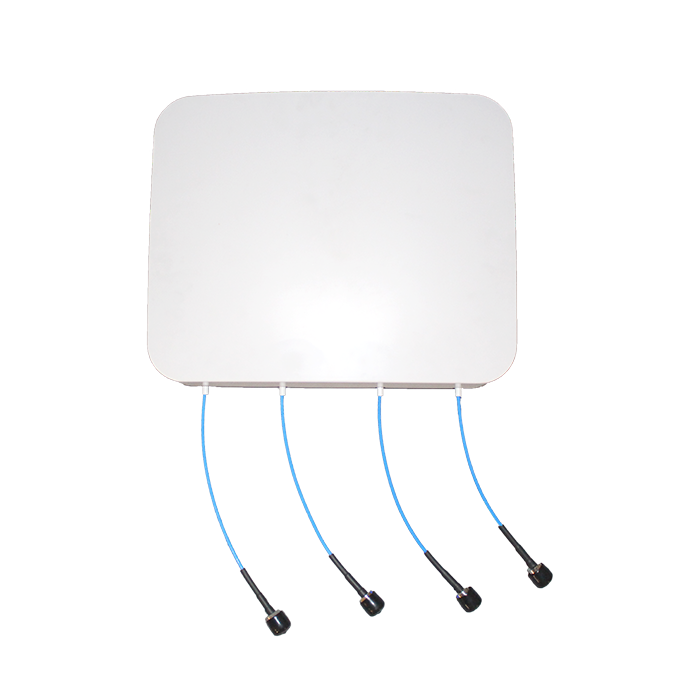

600-4000MHz 4-Port Indoor Directional Wall Mount Panel Antennas

Model: DB-600-4000XX-8-65A-ID-LP
Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz
Gain: 4.0dBi, 5.5dBi, 8.5dBi, 7.0dBi
VSWR: ≤2.5, ≤2.0, ≤2.0, ≤2.0
Polarization: Horizontal + Vertical

600-4000MHz 4-Port Indoor Directional Wall Mount Panel Antennas


Electrical Specifications

Frequency Range(MHz)

600-698

617-698

698-960

1710-2700

3300-4000

Gain(dBi)

4.0

5.5

5.5

8.5

7.0

VSWR

≤2.5

≤2.5

≤2.0

≤2.0

≤2.0

Polarization

Horizontal + Vertical

Isolation(dB)

10

12

12

20

≥24

Front to Back Ratio(dB)

≥6

≥7

≥7

≥13

≥10

PIM, 3rd Order, 2x20W(dBc)

≤-140

≤-140 | -150 | -153

Horizontal Beam width

108-80°

130-85°

130-85°

95-58°

65-33°

Vertical Beam width

98-75°

108-78°

108-78°

83-45°

90-25°

Input Impedance

50 Ω

Max. Input Power

50 W

Mechanical Specifications

Connector

4xN | 4.3-10 Female

Dimensions(mm)

393x317x80

Weight(kg)

1.5

Radome Material

ABS

Operating Temperature

-40°C to +65°C

Mounting

Wall Mount | Pole Mount






Horizontal

4-Port Indoor Panel Antennas
4-Port Directional Antennas
4-Port Wall Mount Antennas





Vertical

4-Port Indoor Panel Antennas4-Port Directional Antennas
4-Port Wall Mount Antennas
700-960MHz1710-2690MHz3300-3950MHz
