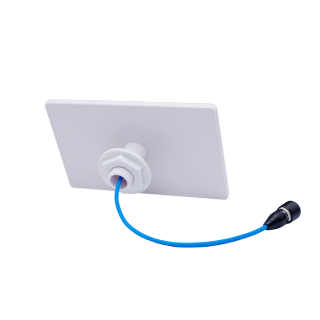

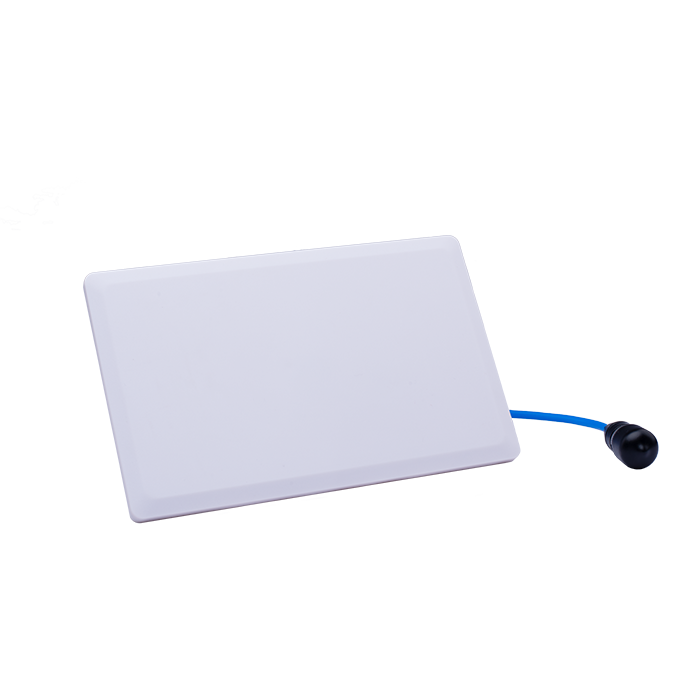

600-2700MHz SISO Indoor Card Omni Ceiling Mount Antennas
Model: QX-698-2700-4-LP
Freq: 698-960MHz, 1710-2700MHz
Gain: 3.5dBi, 4.0dBi
VSWR: ≤1.8, ≤1.8
Polarization: Horizontal
Electrical Specifications | ||||||
Frequency Range(MHz) | 698-960 | 1710-2700 | ||||
Gain(dBi) | 3.5 | 4.0 | ||||
VSWR | ≤1.8 | ≤1.8 | ||||
Polarization | Horizontal | |||||
PIM, 3rd Order, 2x20W(dBc) | ≤-140 | -150 | -153 | |||||
Horizontal Beam width | 360° | |||||
Vertical Beam width | 85° | 75° | ||||
Input Impedance | 50 Ω | |||||
Max. Input Power | 50 W | |||||
Mechanical Specifications | ||||||
Connector | N | 4.3-10 Female | |||||
Dimensions(mm) | 180x113x7.0 | |||||
Weight(kg) | 0.2 | |||||
Color | White | |||||
Radome Material | ABS | |||||
Operating Temperature | -40°C to +65 °C | |||||
Mounting | Ceiling Mount | |||||
Horizontal |  |  |
Vertical |  |  |
| 700-960MHz | 1710-2690MHz |
